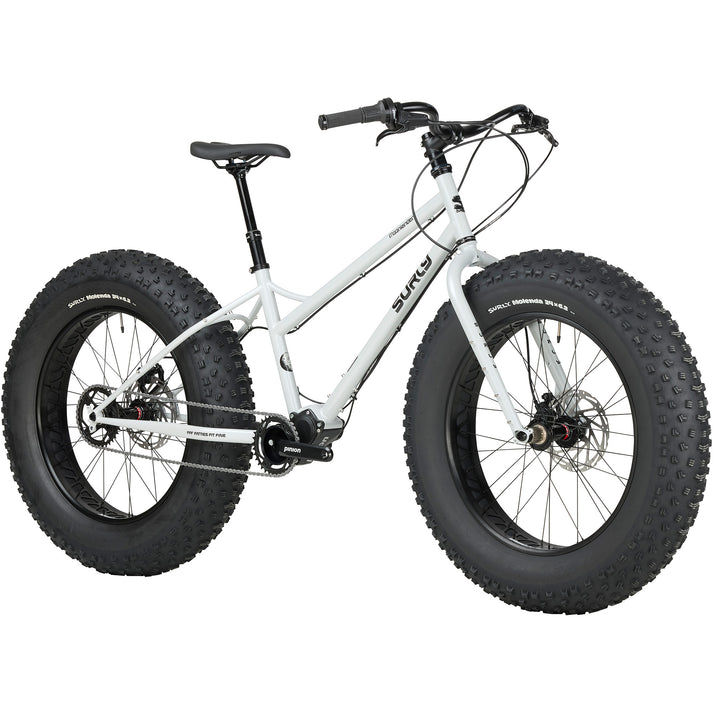

Surly Moonlander - 24"
Surly Moonlander - 24"
Couldn't load pickup availability
When we find ourselves with a deep, primal urge to explore beyond the horizons of our beloved Flat Earth, few things satiate this need. Moonlander is one of them.
A portal into previously unridden terrain, Moonlander goes where other fat bikes don’t dare, where traction is a supposed myth and the only grams worth saving are in our Dugout Bag.
Our newly developed, high-volume Molenda tires were key. (Even the fattest in-market tires don’t cut it, and that includes our own line.) Therefore, we equipped this one with 24 x 6.2-inch tires on 100mm rims. Such a large footprint allows us to ride at very low pressure, enabling the ability to float over a geographic smorgasbord of otherworldly terrain. Think rocky dunes, creeping shorelines, frozen beaches, sinuous stretches of snow and the like.
- Carefully crafted from our 4130 Chromoly steel, with a bottom bracket height that supplies plenty of clearance for bushwhacking and monster-trucking without losing out on stability

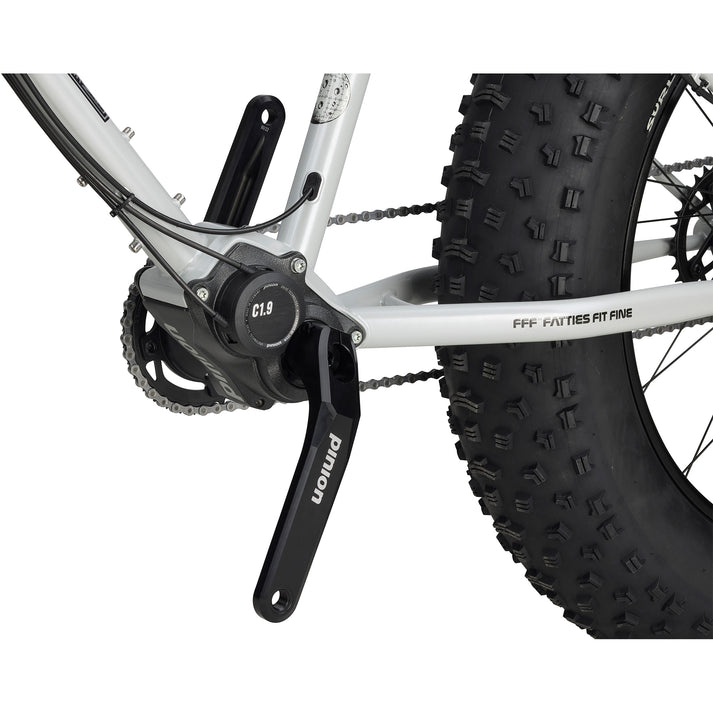

- Surly's first bike with a 9-speed Pinion gearbox, an innovative approach to spur gearing that improves reliability and go-anywhere performance with less maintenance
- The top tube maximizes standover height and foot dabs into soft substances, while keeping the headtube high so you can set up your rig in a comfortable, all-day-grind riding position
- Large volume Surly Molenda Tires on 24 x 100mm Surly Clown Royal Rims inflated by new TPU tubes creates a footprint large enough to float over unrideable (until now) terrain
- Clearance for 24 x 6.2” tires, as well as 26 x 5.1”, 27.5 x 4.8”, and 29 x 3”
- Comes with rack and fender mounts, as well as accessory mounts on both fork blades to enhance cargo capacity (compatible with our rear disc wide rack)
- Weight distribution across front and rear, with a longer back, allows for greater stability
- Features Tektro HD-M285 Hydraulic Disc Brake System
- Four frame sizes to fit most riders: SM, MD, LG, XL
- Includes a dropper for easier on and off, especially on soft surfaces
| Frameset | |
|---|---|
| Frame | Surly Moonlander Frame - 100% Surly Chromoly steel. E.D. coated. Triple-butted main triangle. TIG-welded. |
| Color | Lunar Dust Gray |

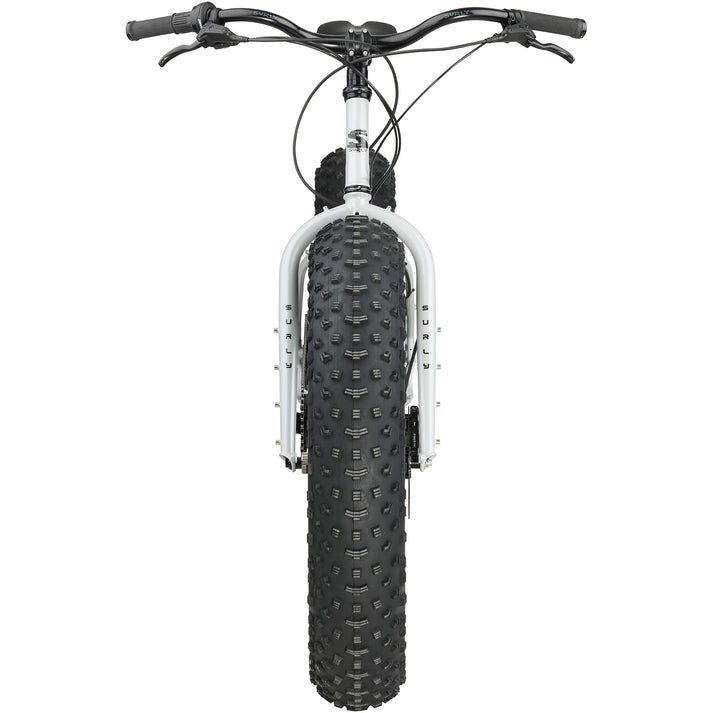

| Fork | Surly Moonlander Fork - 100% Surly Chromoly steel. 1-1/8" straight steerer with tapered straight blade, TIG-welded, E.D. Coated. 51mm IS front standard disc mount. 197mm x 12mm thru-axle dropouts (axle included). |
| Components | |
| Headset | Cane Creek 40 |
| Seatpost Clamp | Surly stainless, 33.1mm |
| Seatpost | TransX YSP15JL Dropper, 125mm travel (100mm travel on SM) |
| Stem | Promax, 31.8, 4-bolt |
| Grips/Bar Tape | Velo Lock-on |
| Saddle | WTB Volt Medium |
| Drivetrain | |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Cassette | FSA Steel 36T Megatooth Chainring |
| Chain | KMC X10 EPT Anti-Rust |
| Crankset | Pinion for Surly crankset 34T, with Pinion high-offset spider |
| Shifter | Pinion Rotary Shifter |
| Bottom Bracket | Pinion C1.9 XR 9spd Gearbox |
| Wheels | |
| Front Tire | Surly Molenda Tire 24 X 6.2”, 60tpi, Tubeless Ready |
| Rear Tire | Surly Molenda Tire 24 X 6.2”, 60tpi, Tubeless Ready |
| Front Hub | Novatec 12x197mm, Thru-Axle, 32h |
| Rear Hub | Novatec 12x197mm, Thru-Axle, 32h |
| Rim | Surly Clown Royal 24", 100mm wide |
| Weight | |
|
*Specifications are subject to change without notice |
|
