Surly

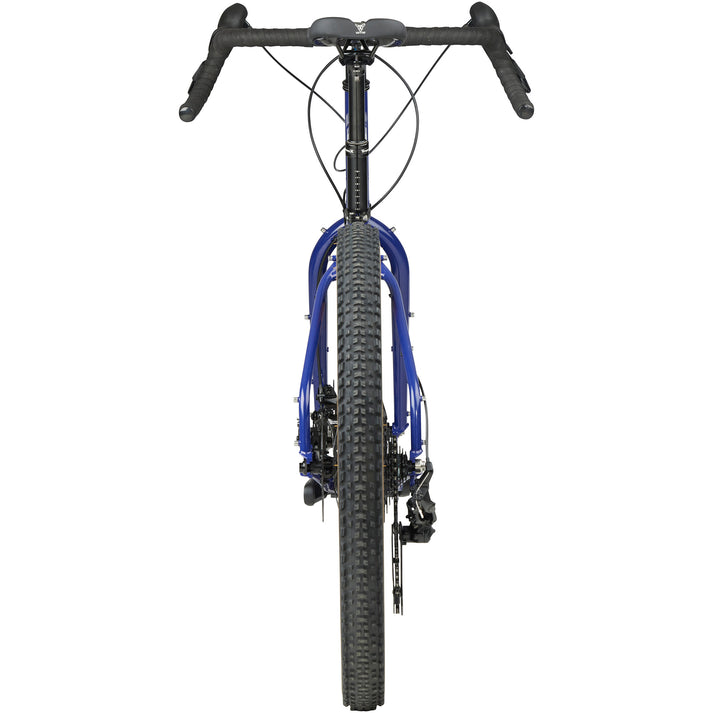

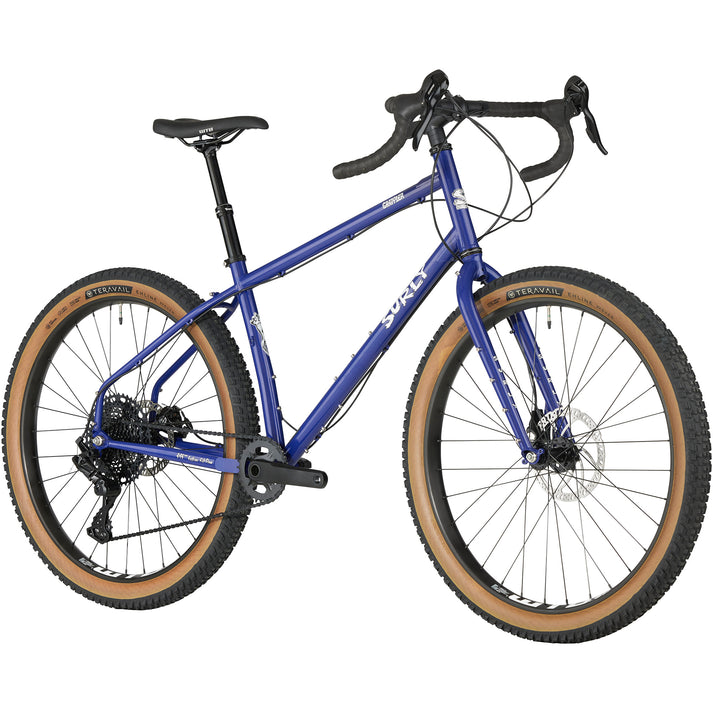

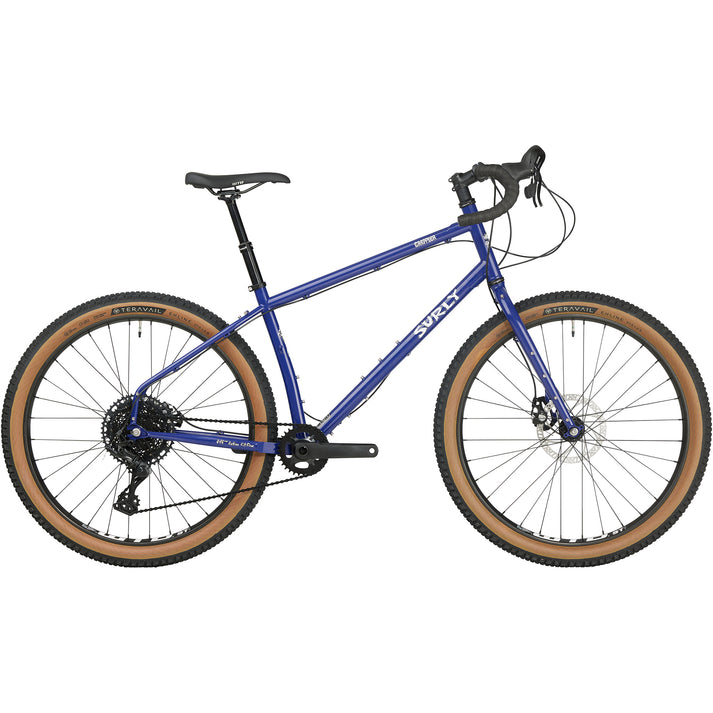

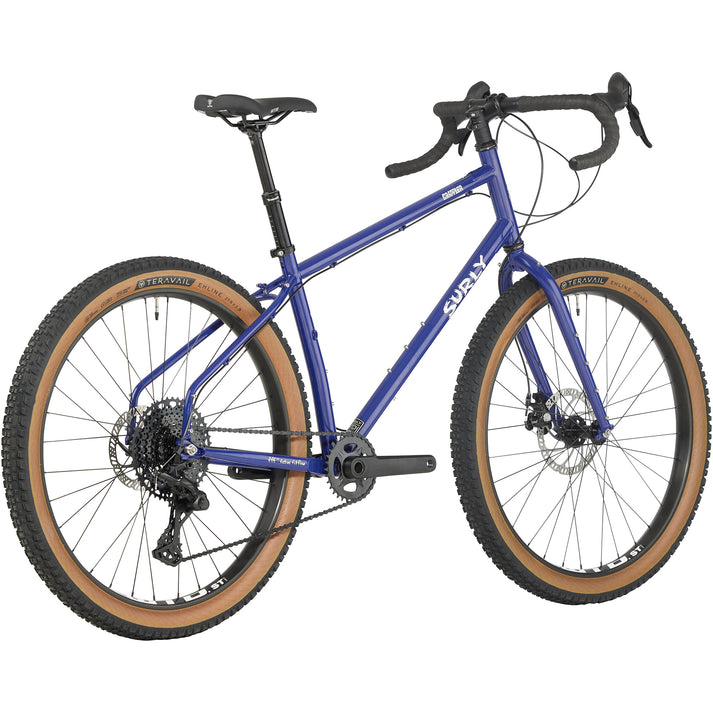

Surly Grappler - 27.5, Subterranean Homesick Blue

Surly Grappler - 27.5, Subterranean Homesick Blue

Regular price $2,699.00 CAD
Regular price Sale price $2,699.00 CAD
Sale Sold out
Size
CALL NOW FOR AVAILABILITY AND SIZING - Call 416 677 9482

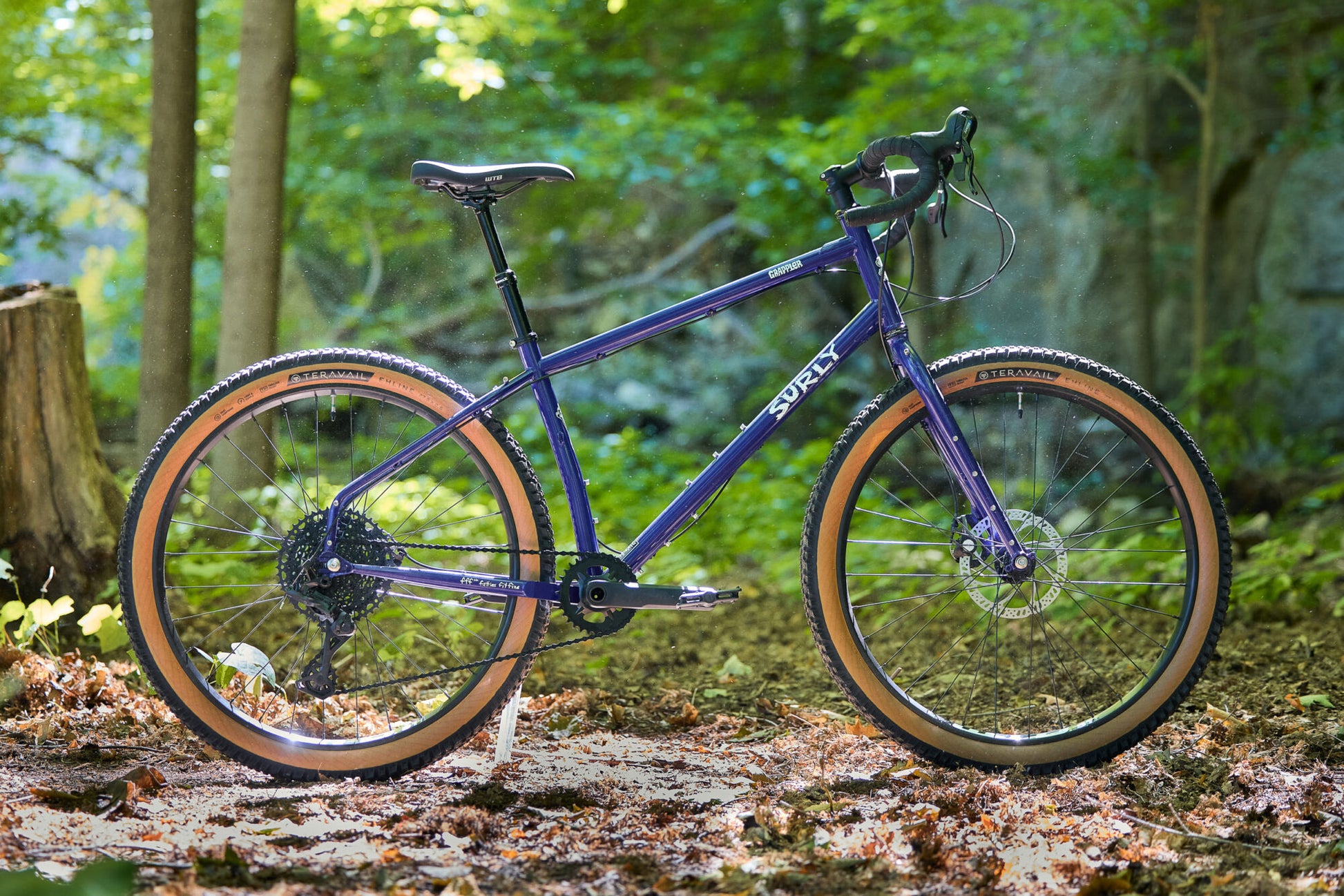

A Trail Bike Tailored for Drop Bars

The Grappler is Surly’s dedicated drop-bar trail bike. With mountain geo designed around a comfortable, confident drop-bar hand position, it’s lively and responsive on single track, double track, and other degraded surfaces. Ready to haul essential gear for all-day dirt rides and quick bikepacking excursions, thru-axles front and rear provide ideal stiffness and handling. Built around 27.5” wheels and compatible with internally geared hub and single-speed setups, Surly’s tried-and-true Gnot-Boost spacing allows riders to run 142mm or 148mm rear hubs.

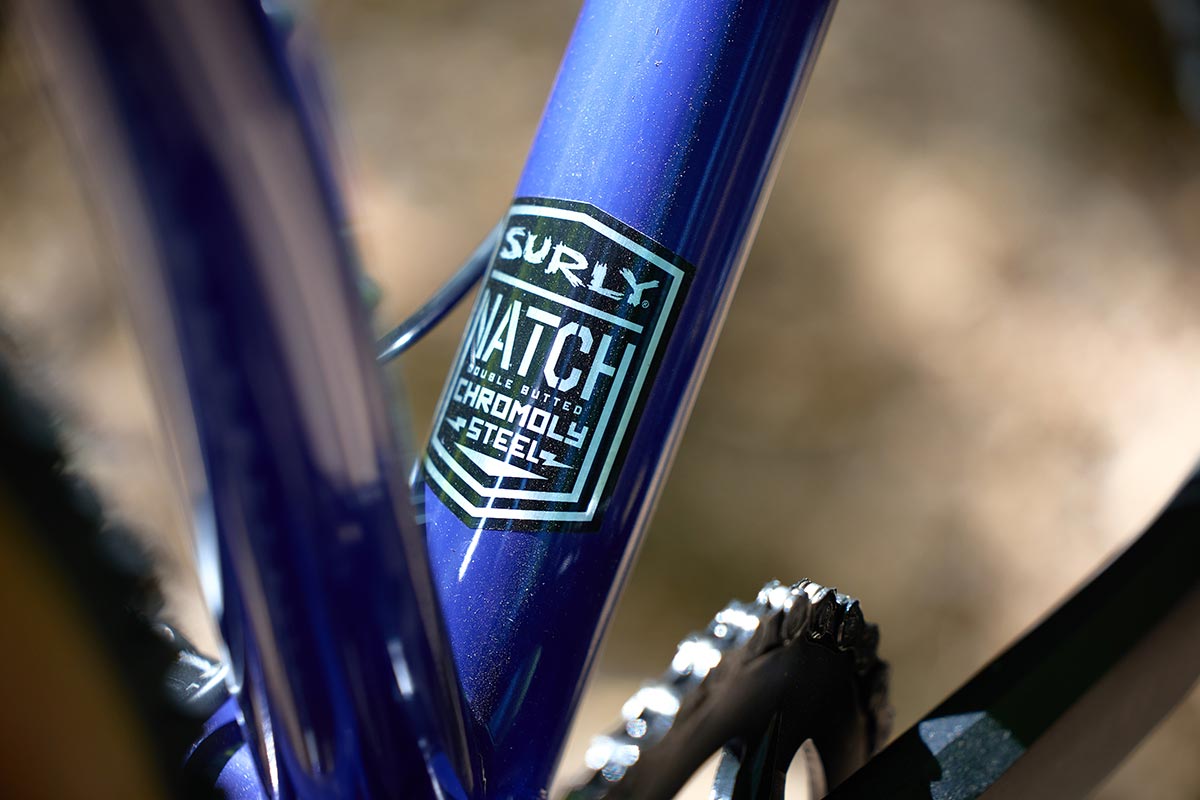

  • 100% Surly Chromoly steel frame and fork, featuring Surly’s proprietary ’Natch tubing, double-butted main triangle, 1-1/8” headtube, non-suspension corrected

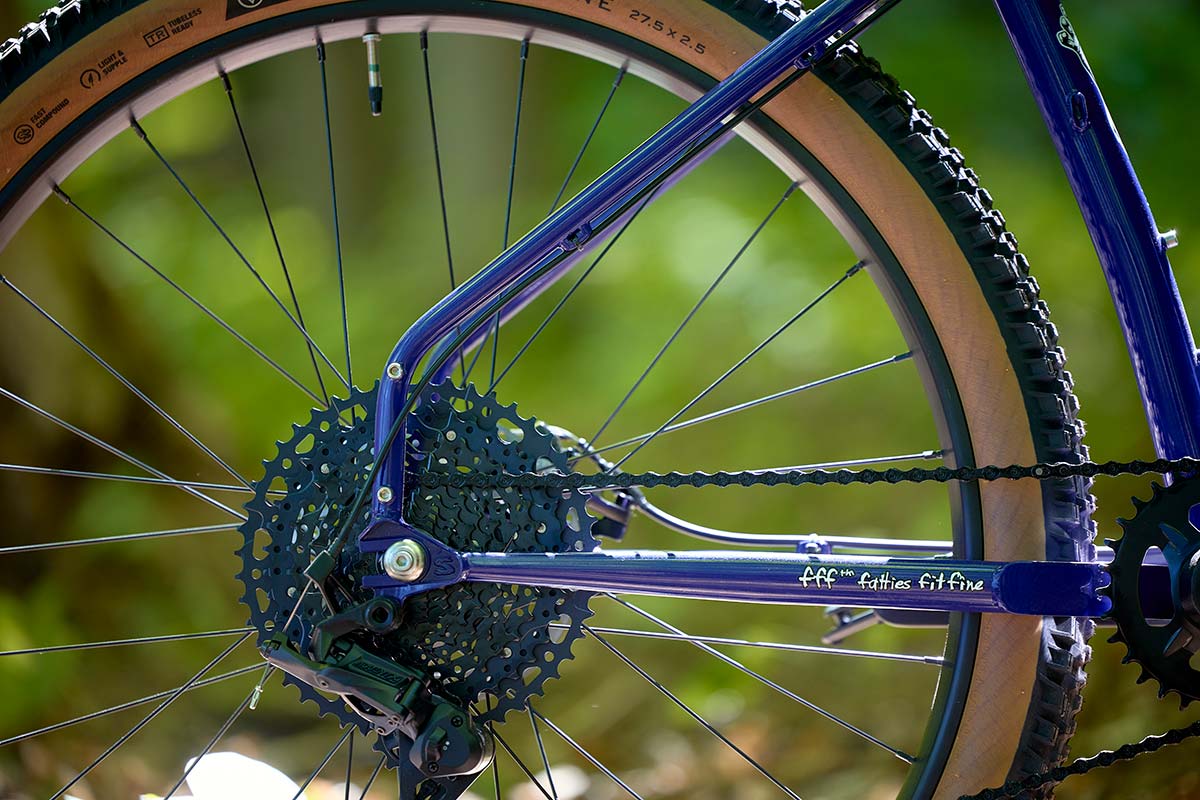

  • Horizontal-slotted dropout, Surly Gnot-Boost spacing

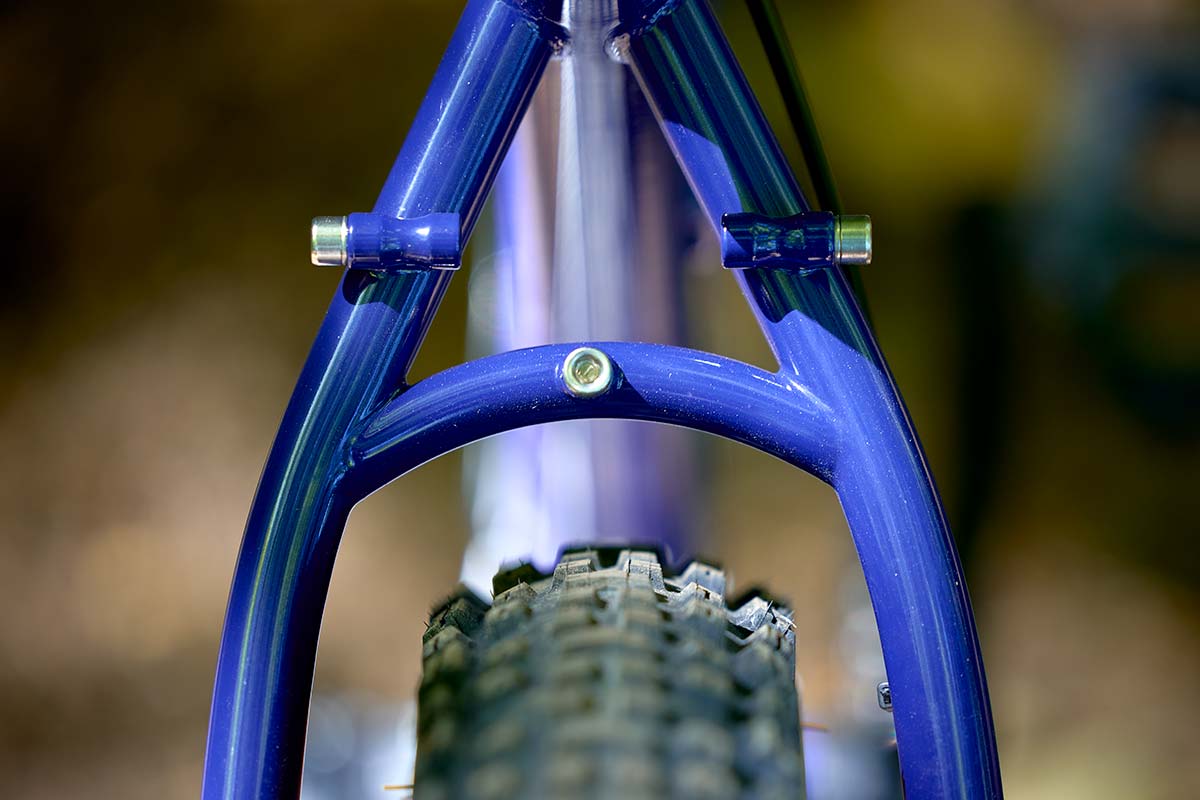

  • Seatstay-mounted bottle bosses, plus three-pack mounts at the top and bottom of the down tube and stealth dropper post routing
  • E.D. coated frame for increased life expectancy
  • 27.5 x 2.8” tire clearance (with or without fenders)



Frameset
Frame 100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Color Subterranean Homesick Blue

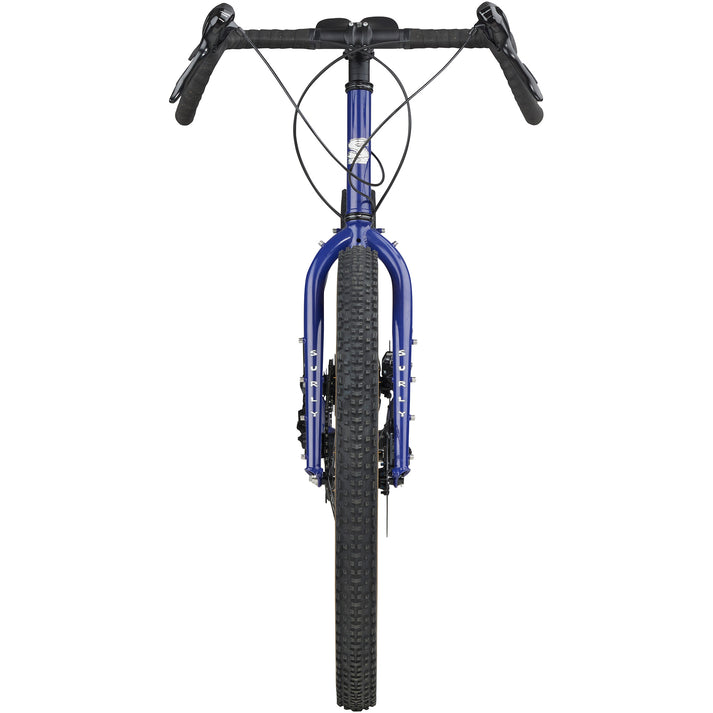

Fork Surly Dinner Fork - 100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Components
Headset Cane Creek 40
Seatpost Clamp Surly Stainless 33.1
Seatpost TransX YSP15 Dropper 360mm, 100mm travel
Stem Promax DA-296, 31.8mm
Grips/Bar Tape Black Cork
Saddle WTB Volt 142
Handlebar Salsa Cowchipper 31.8
Drivetrain
Front Derailleur N/A
Rear Derailleur microSHIFT M6205
Cassette microSHIFT 11–48t
Chain KMC X10 Black
Crankset Samox BSA 2PCS Boost 32t
Shifter microSHIFT SB-M100A, AdventX Dual Control Levers
Brake Levers Tektro Mira MD-C400
Brake Calipers Tektro Mira MD-C400
Bottom Bracket Samox BSA
Rotors Tektro 180/160
Wheels
Front Tire Teravail Ehline, 27.5 x 2.5", 60tpi
Rear Tire Teravail Ehline, 27.5 x 2.5", 60tpi
Front Hub Novatec 15x110mm, 32h
Rear Hub Novatec 12x148mm, 32h
Tubes Included and installed
Rim WTB ST i40 TCS
Warranty
Frame Limited Warranty
