Surly Grappler - 27.5"

Name: Surly Grappler - 27.5"
Brand: Surly
Price: 2699.00 CAD
Availability: InStock

$2,699.00 CAD

~~$2,699.99 CAD~~ $2,699.00 CAD

Sale Sold out

Colour: Purple Dust Bunny

Size XS Small Medium Large XL

CALL NOW FOR AVAILABILITY AND SIZING - Call 416 677 9482 STOP: Special Order Item

Quantity

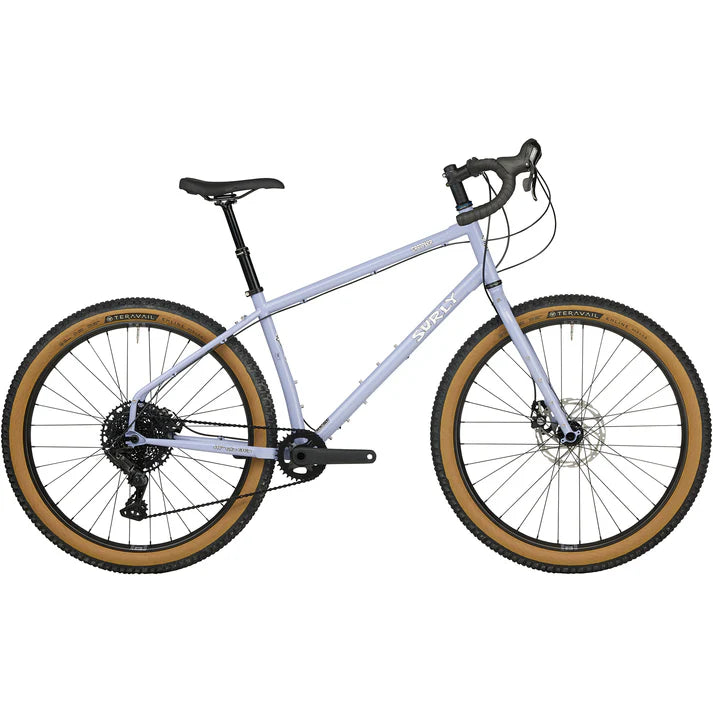

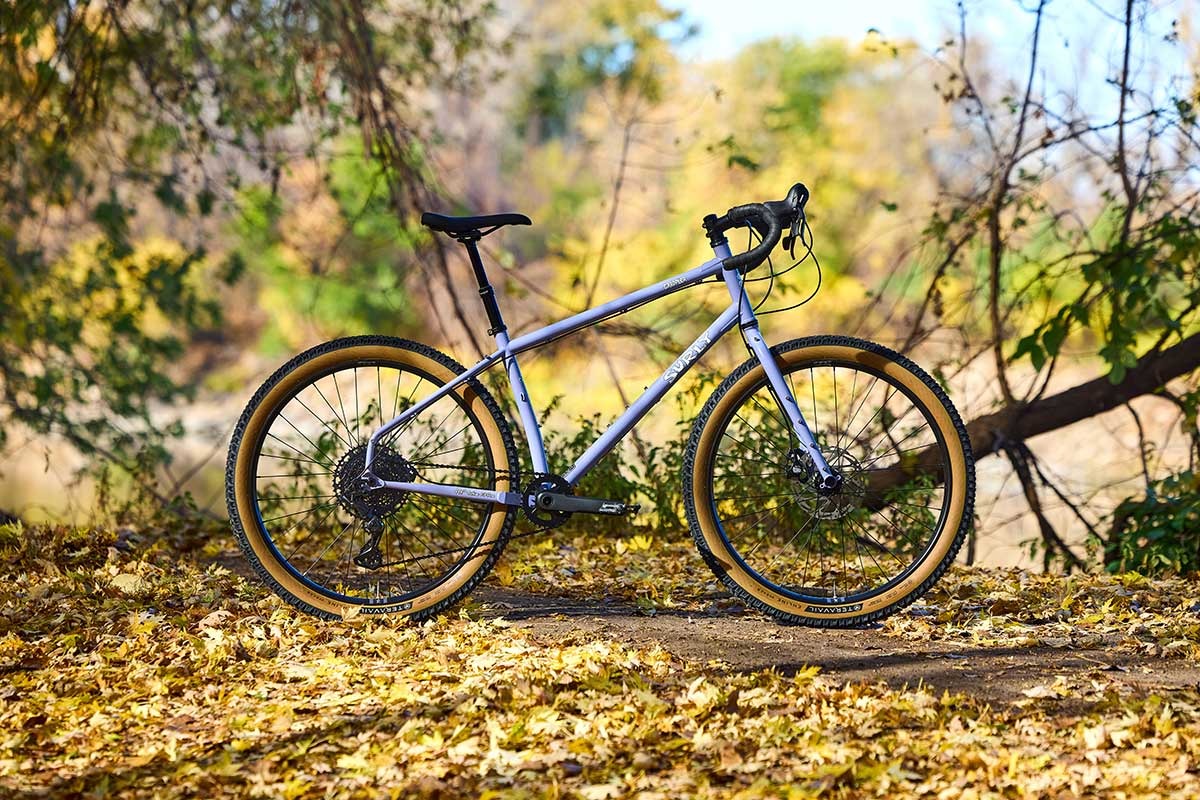

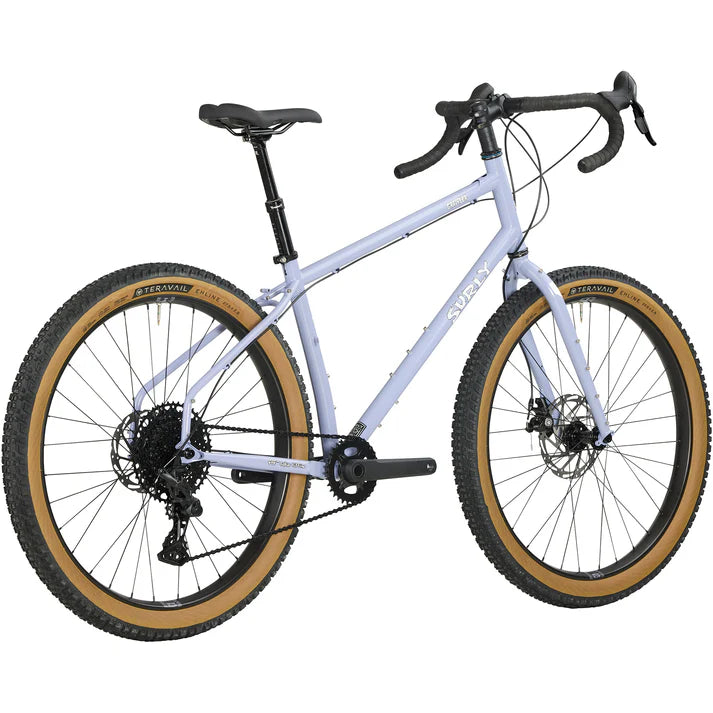

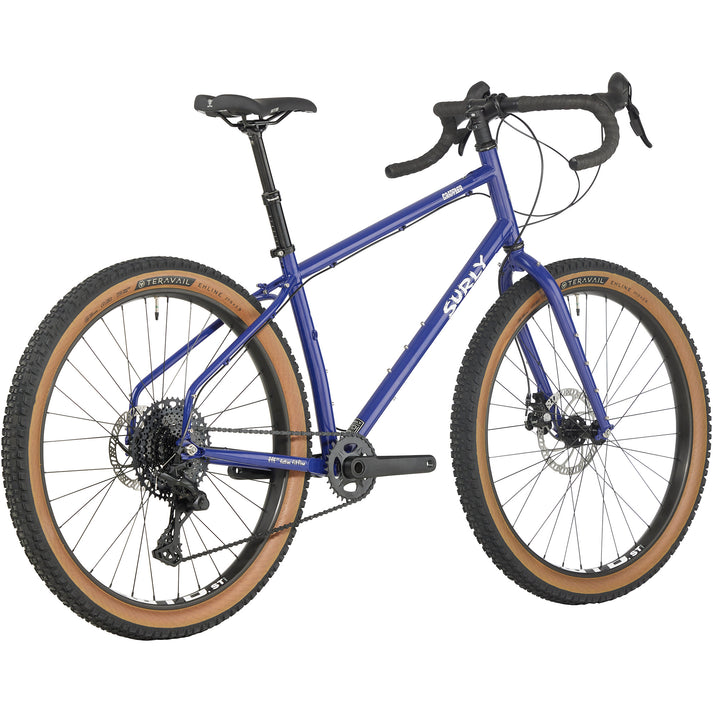

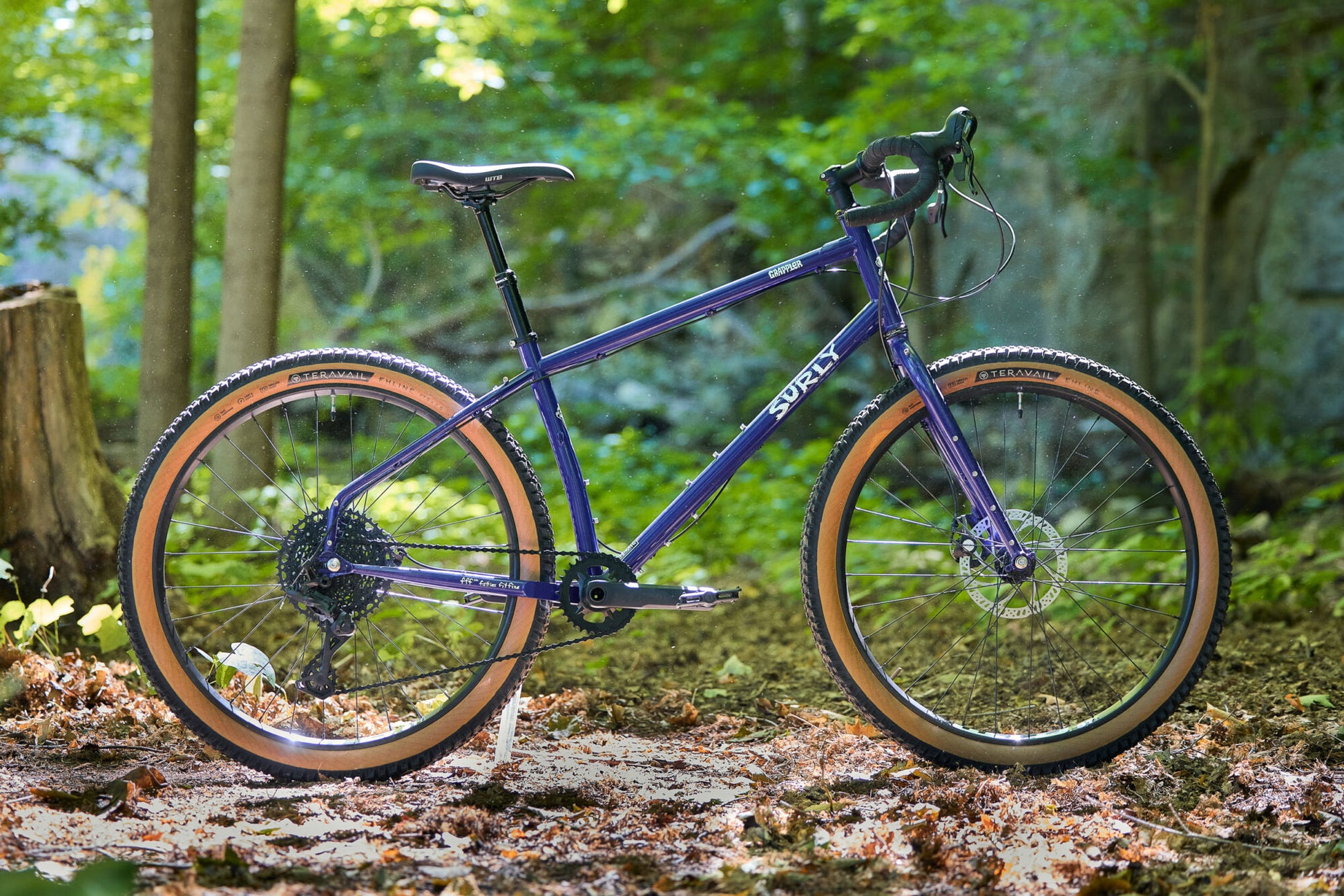

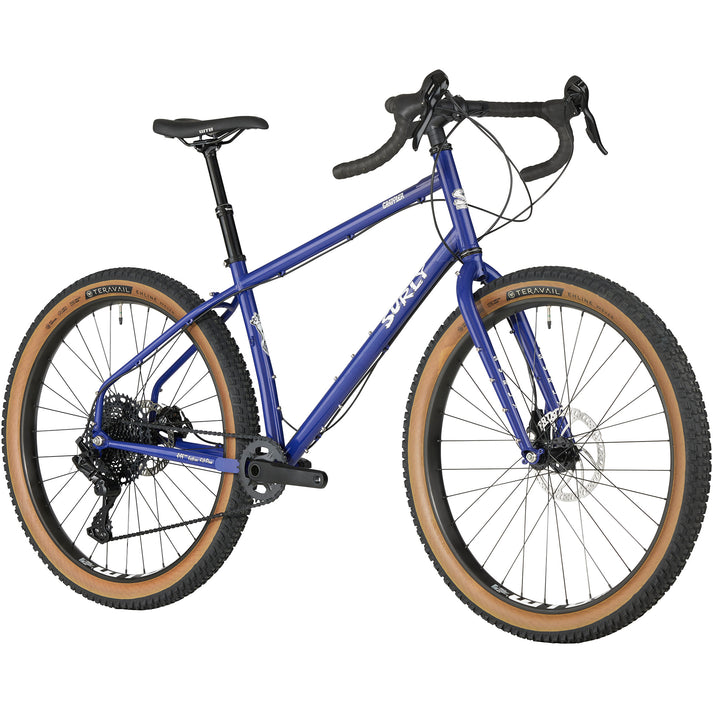

Grappler is a drop-bar trail bike built for single-track sessions, all-day dirt rides, and bikepacking excursions.

A Trail Bike Tailored for Drop Bars

Off-road enthusiasts have been Frankensteining drop bars onto trail bikes for decades, so we designed the Grappler to scratch that itch with a little more precision. Engineered first and foremost around a stable and comfortable drop-bar hand position, its trail-ready geo provides a spirited ride on mixed terrain.

Cleared for girthy tires and decorated with an array of mounts for hauling your daily provisions and overnight gear, the Grappler is ready to take you and your paraphernalia down that overgrown fire road for an extrasensory experience. There’s nothing to be afraid of. Probably.

Featuring Surly’s versatile Gnot-Boost spacing, allowing riders to run 142mm or Boost 148mm rear hubs; thru-axles; stealth dropper post routing; non-suspension corrected

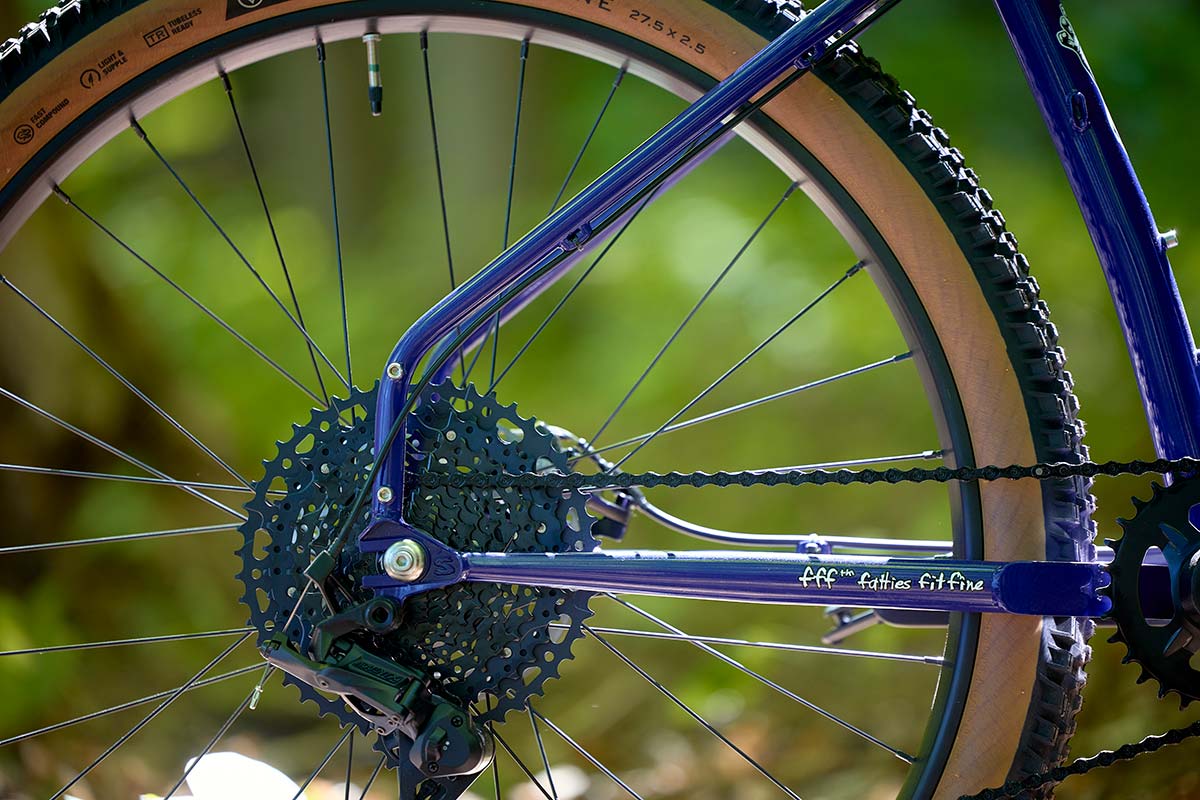

Custom dropouts ready to run single-speed or internally geared hub setups

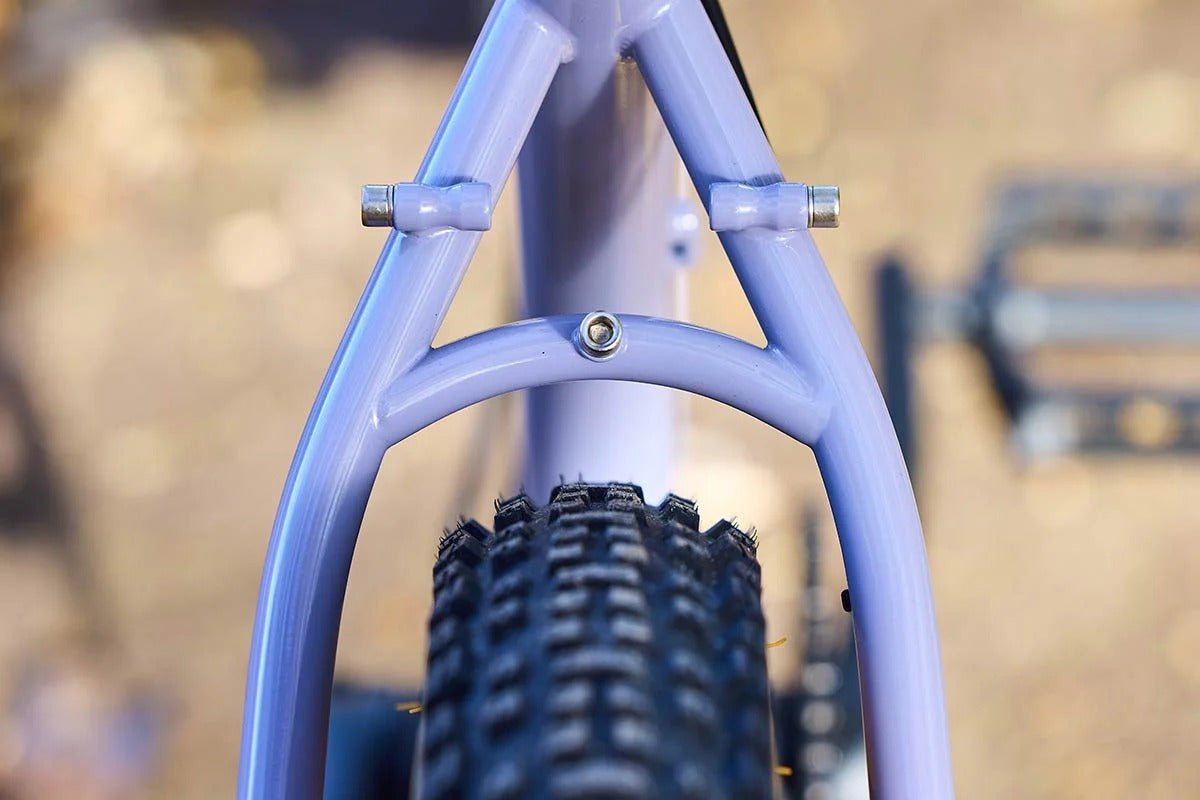

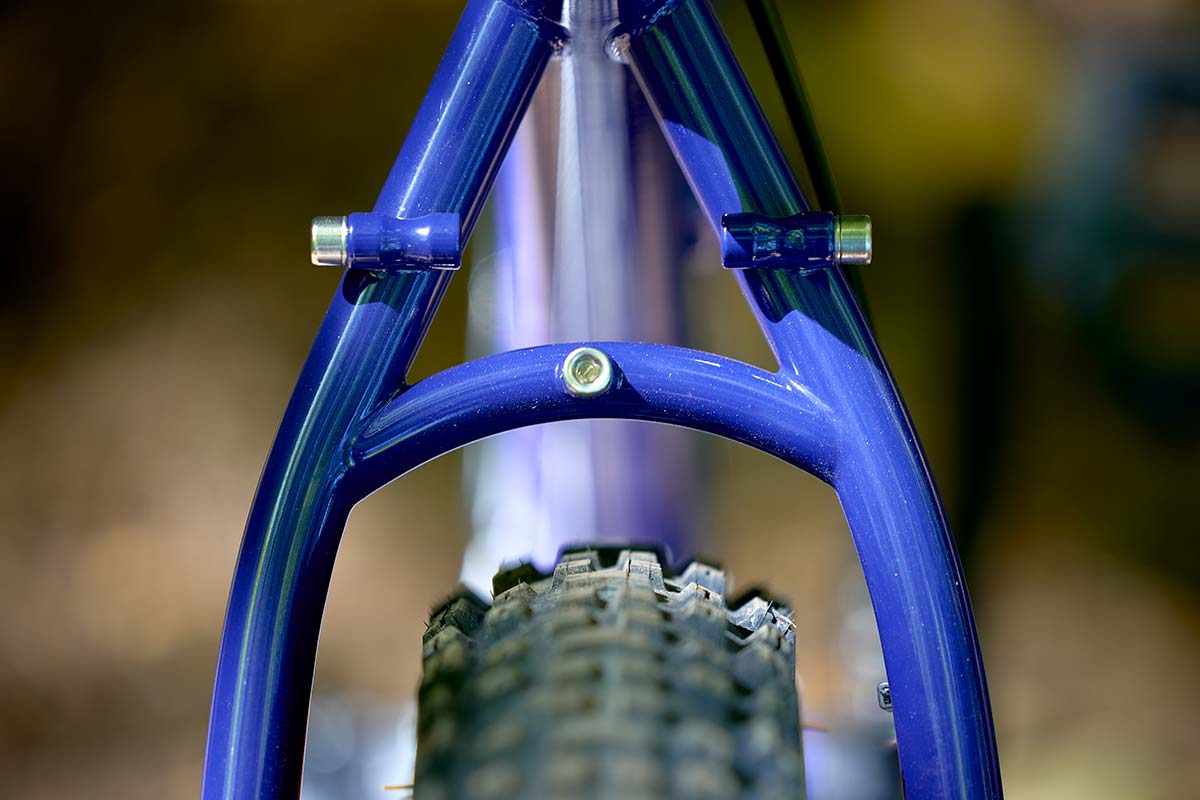

Seatstay-mounted bottle bosses, plus three-pack mounts at the top and bottom of the down tube
Frame tire clearance: 27.5 x 2.8" w/ fender, 27.5 x 3.0" w/o fender, 29 x 2.1" w/ fender (front axle position, 29 x 2.5" w/ fender (rear axle position)

Specs:

Build Kit
Frameset	Frame

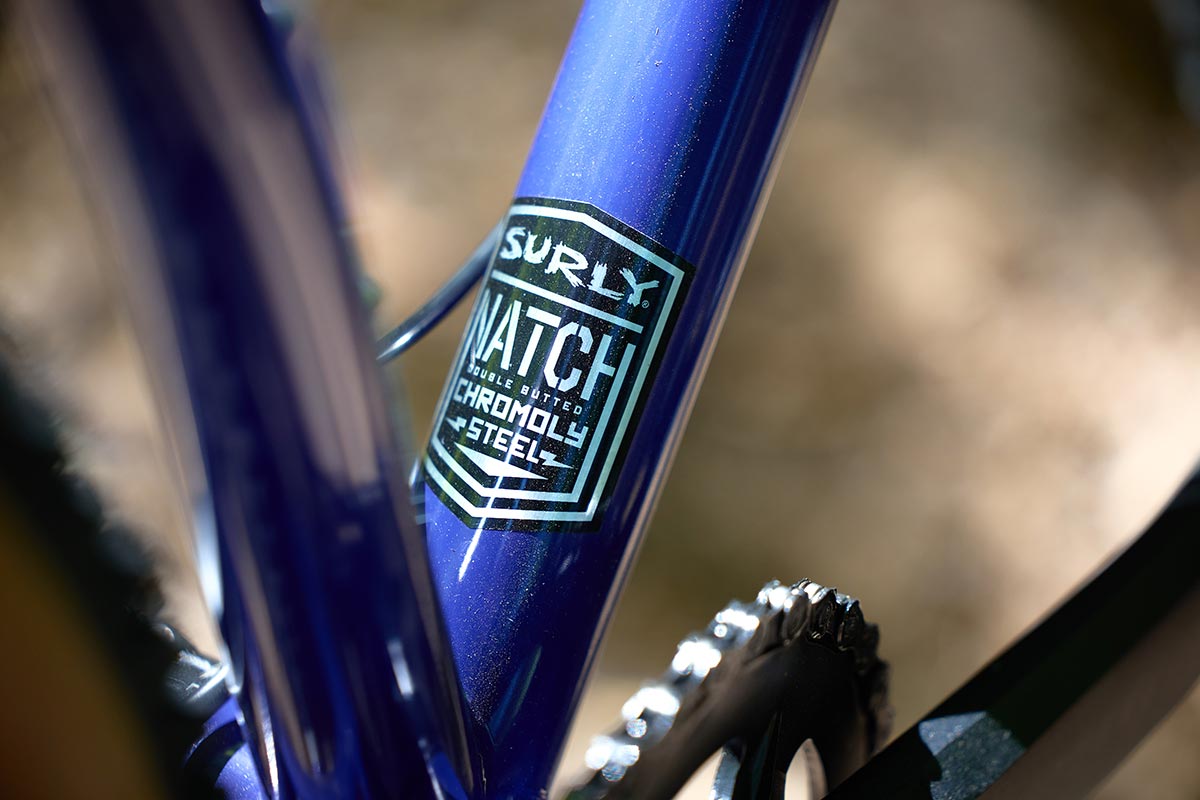

Surly Grappler - 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Color	Purple Dust Bunny

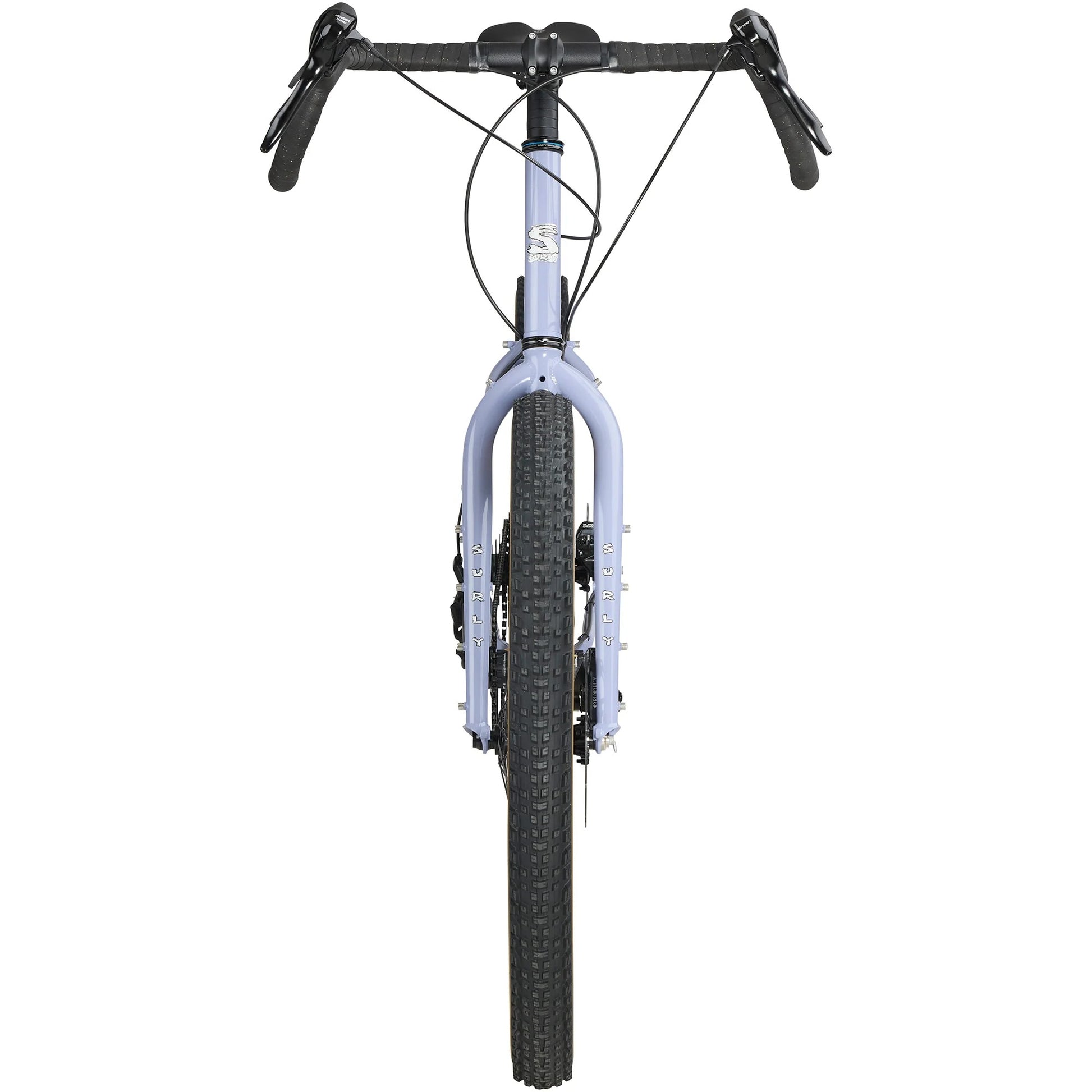

Fork	Surly Dinner Fork - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Components
Headset	Cane Creek 40
Seatpost Clamp	Surly Stainless 33.1

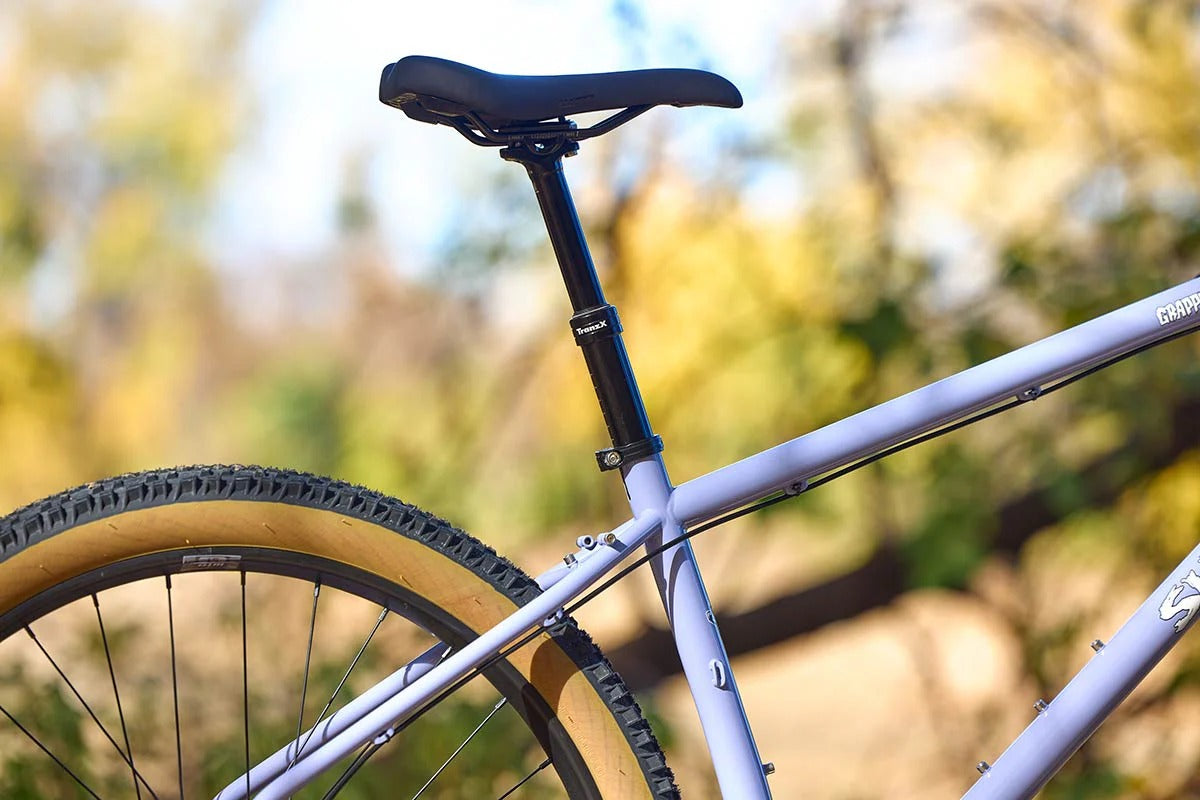

Seatpost	TranzX YSP15, 30.9, 100mm travel
Stem	Promax DA-296, 31.8mm
Grips/Bar Tape	Black Cork
Saddle	WTB Volt

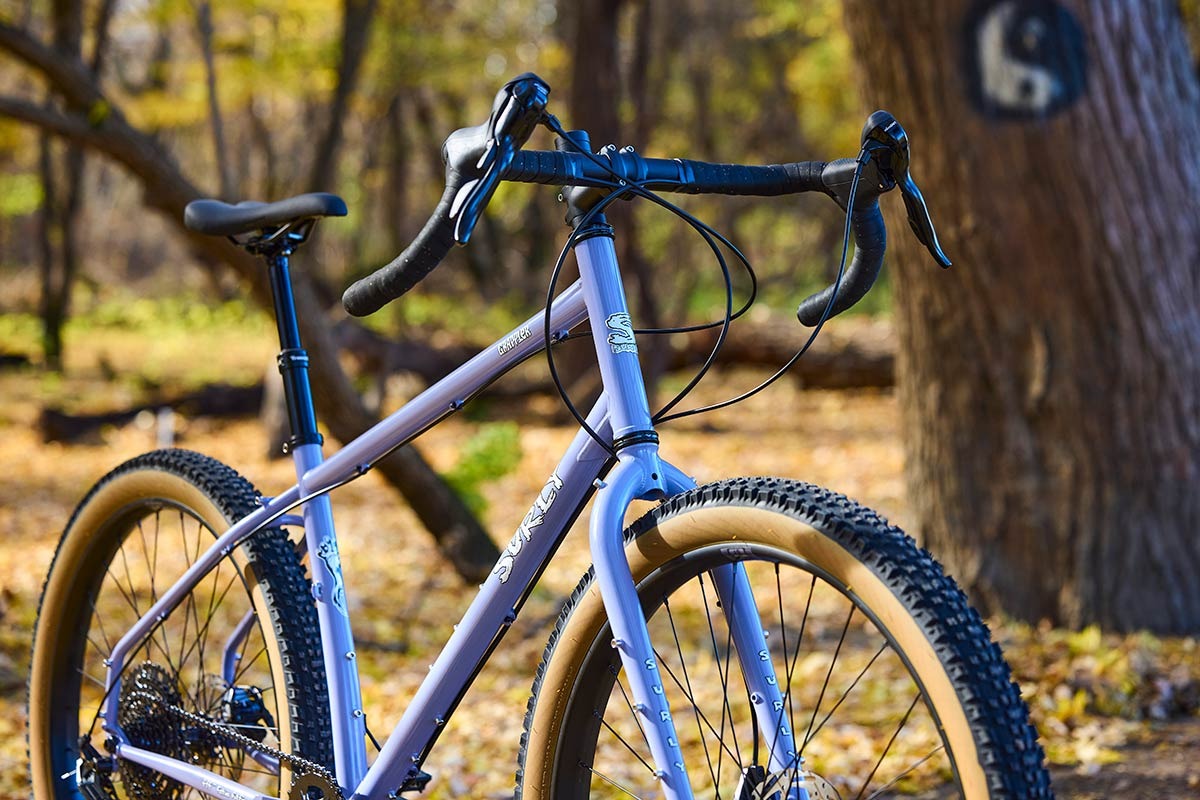

Handlebar	Salsa Cowchipper
Drivetrain
Front Derailleur	N/A
Rear Derailleur	microSHIFT ADVENT X
Cassette	microSHIFT ADVENT X, 11-48t, 10-spd
Chain	KMC X10
Crankset	Samox, 32t
Shifter	microSHIFT ADVENT X
Brake Levers	microSHIFT ADVENT X
Brake Calipers	Tektro Mira
Bottom Bracket	Samox BSA
Rotors	Tektro Front: 180mm, Rear: 160mm
Wheels
Front Tire	Teravail Ehline, 27.5 x 2.5", Light and Supple, Tan Sidewalls
Rear Tire	Teravail Ehline, 27.5 x 2.5", Light and Supple, Tan Sidewalls
Front Hub	Novatec 15 x 110mm, 6-bolt, 32h
Rear Hub	Novatec 12 x 148mm, 6-bolt, 32h
Spoke	14G Black
Rim	WTB ST i40 TCS 2.0
Weight
Complete Bike	30 lb. 5 oz. for Medium
*Specifications are subject to change without notice

Frame specs:

Frame Specs
Design Wheel/Tire Sizes	27.5 x 2.5"
Alternate Wheel/Tire Sizes	29 x 2.2"
Frame Construction	100% Surly Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork Construction	100% Surly Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Rigid Fork Length	420mm
Fork Offset	50mm
Axle to Crown	420mm
Rear Spacing	"Gnot-Boost" 145mm 12 x 142mm or 12 x 148mm (Surly axle included) 10 x 135mm with Surly 10/12 Adapter Washers (not included)
Rear Axle Size	12 x 148mm (Surly axle included)
Front Brake (Rotor)	Disc - 51mm I.S. (203mm max rotor)
Headset - Upper	EC34/28.6
Headset - Lower	EC34/30
Front Axle Size	15 x 110mm (Surly axle included)
Steerer Tube	Ø28.6mm
Crown Race	Ø30mm (1-1/8")
Stem Clamp	Ø28.6mm
Seatpost	Ø30.9mm
Dropper Post Compatible	Yes
Seatpost Clamp	33.1mm
Front Derailleur Clamp	Ø34.9mm
Front Derailleur Type	High direct mount top-pull (Ø34.9mm) 26mm offset adapter (not included) for 142 or 135mm rear hub spacing; 29mm offset adapter (not included) for 148mm rear hub spacing
Bottom Bracket	73mm BSA, threaded
Crankset (Max Ring)	1x (mtn): 36T / 2x (mtn): 36/26T / 1x (Boost): 38T / 2x (Boost): 39/32T
Bottle Mounts	3-pack mounts on upper and lower downtube; seat tube bottle mounts on frame sizes S–XL
Fork Mounts	3-pack mounts on each fork blade, upper and lower threaded rack mounts
Front Fender Mounts	Yes
Rear Fender Mounts	Yes
