Surly Grappler
Surly Grappler
Couldn't load pickup availability

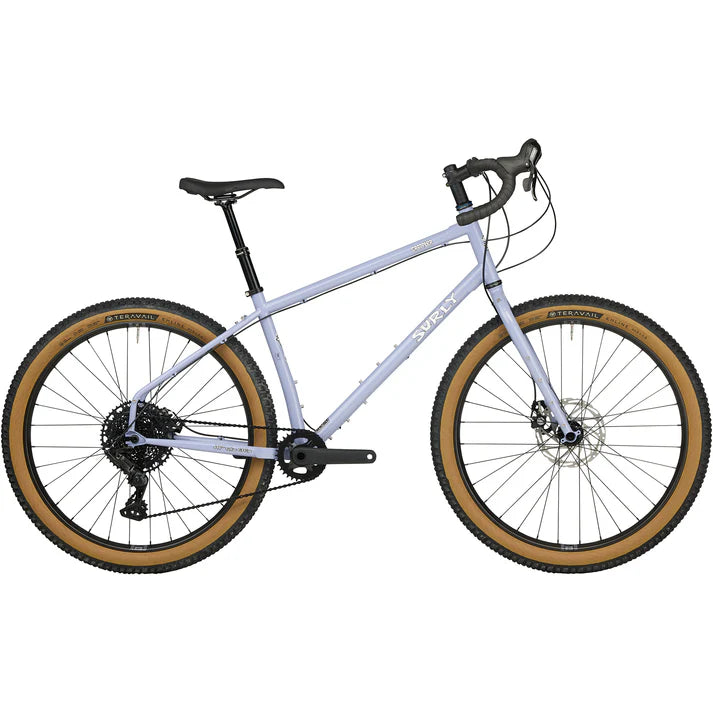

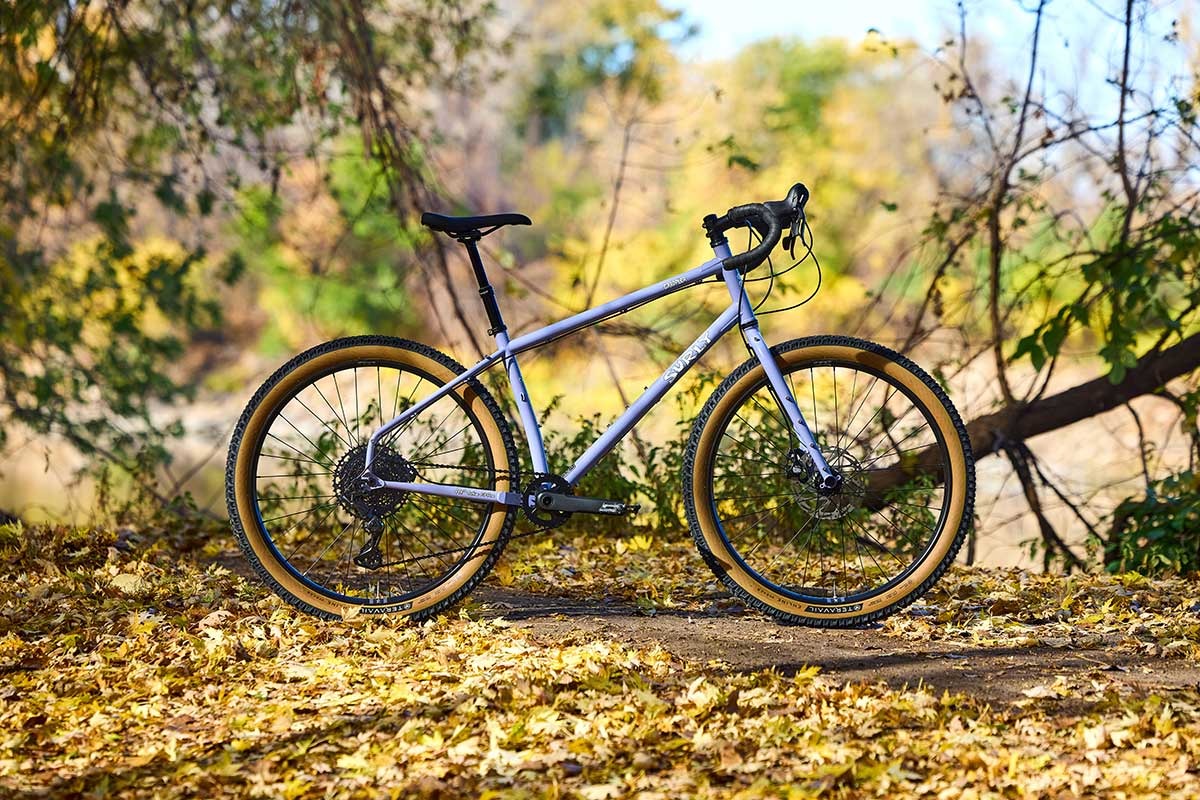

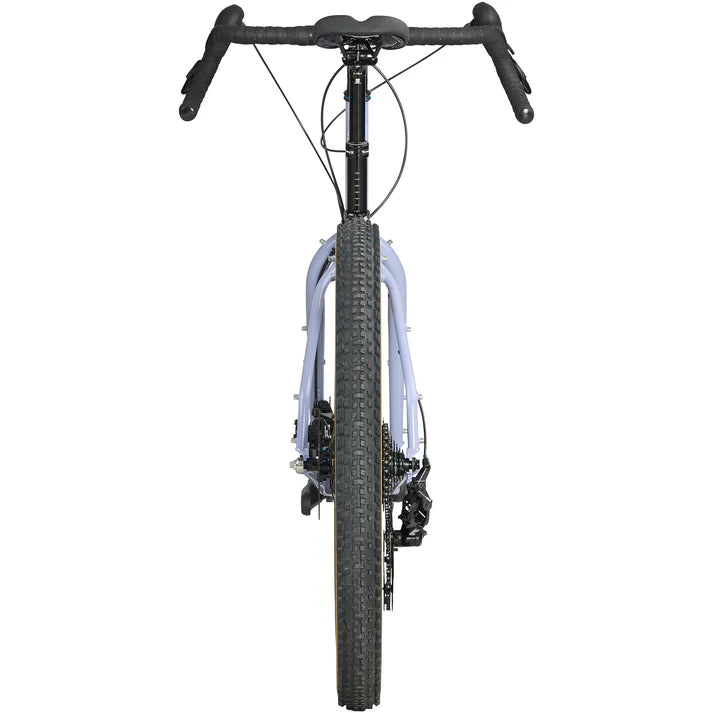

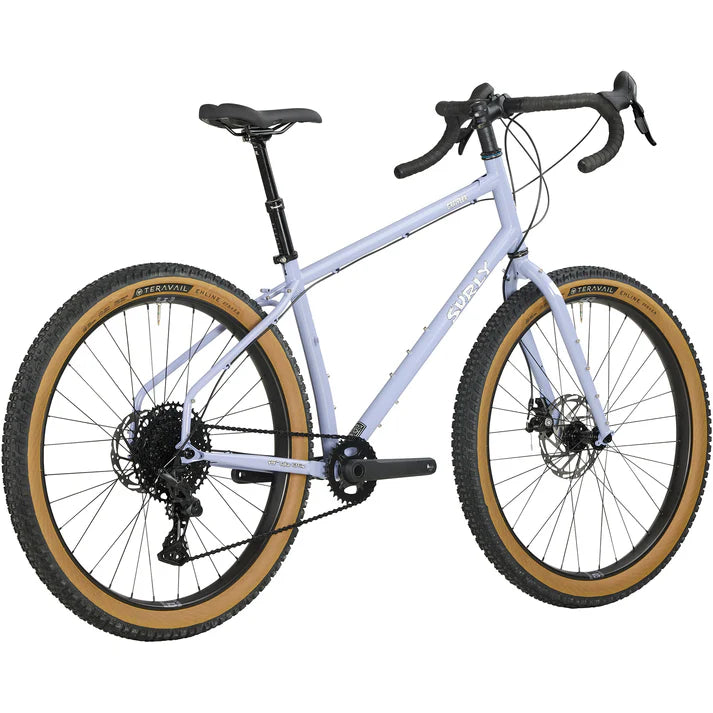

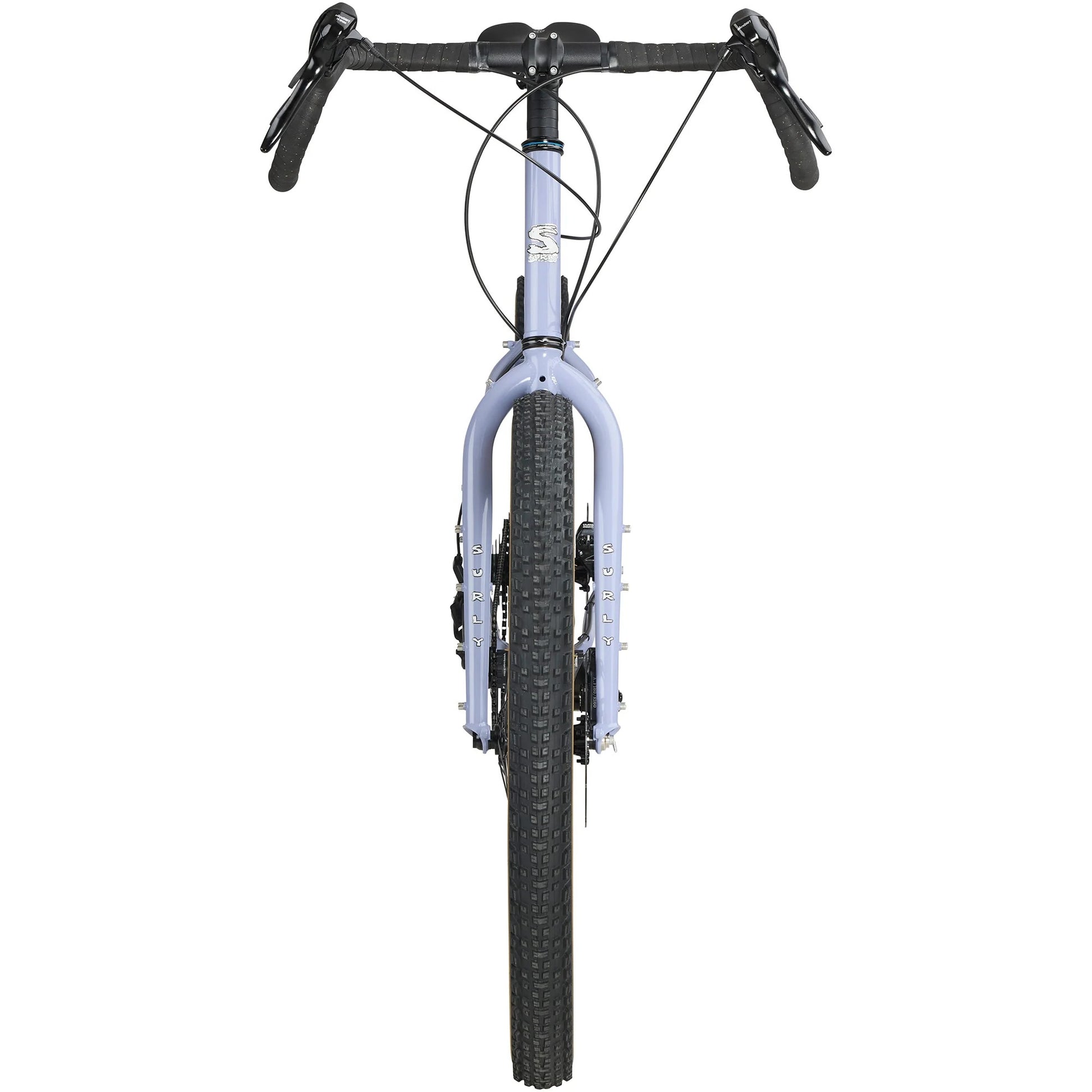

Grappler is a drop-bar trail bike built for single-track sessions, all-day dirt rides, and bikepacking excursions.
A Trail Bike Tailored for Drop Bars
Off-road enthusiasts have been Frankensteining drop bars onto trail bikes for decades, so we designed the Grappler to scratch that itch with a little more precision. Engineered first and foremost around a stable and comfortable drop-bar hand position, its trail-ready geo provides a spirited ride on mixed terrain.
Cleared for girthy tires and decorated with an array of mounts for hauling your daily provisions and overnight gear, the Grappler is ready to take you and your paraphernalia down that overgrown fire road for an extrasensory experience. There’s nothing to be afraid of. Probably.
- Featuring Surly’s versatile Gnot-Boost spacing, allowing riders to run 142mm or Boost 148mm rear hubs; thru-axles; stealth dropper post routing; non-suspension corrected
- Custom dropouts ready to run single-speed or internally geared hub setups
- Seatstay-mounted bottle bosses, plus three-pack mounts at the top and bottom of the down tube
- Frame tire clearance: 27.5 x 2.8" w/ fender, 27.5 x 3.0" w/o fender, 29 x 2.1" w/ fender (front axle position, 29 x 2.5" w/ fender (rear axle position)
Specs:
Frameset
Frame
Surly Grappler - 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Color
Purple Dust Bunny
Fork
Surly Dinner Fork - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Components
Headset
Cane Creek 40
Seatpost Clamp
Surly Stainless 33.1
Seatpost

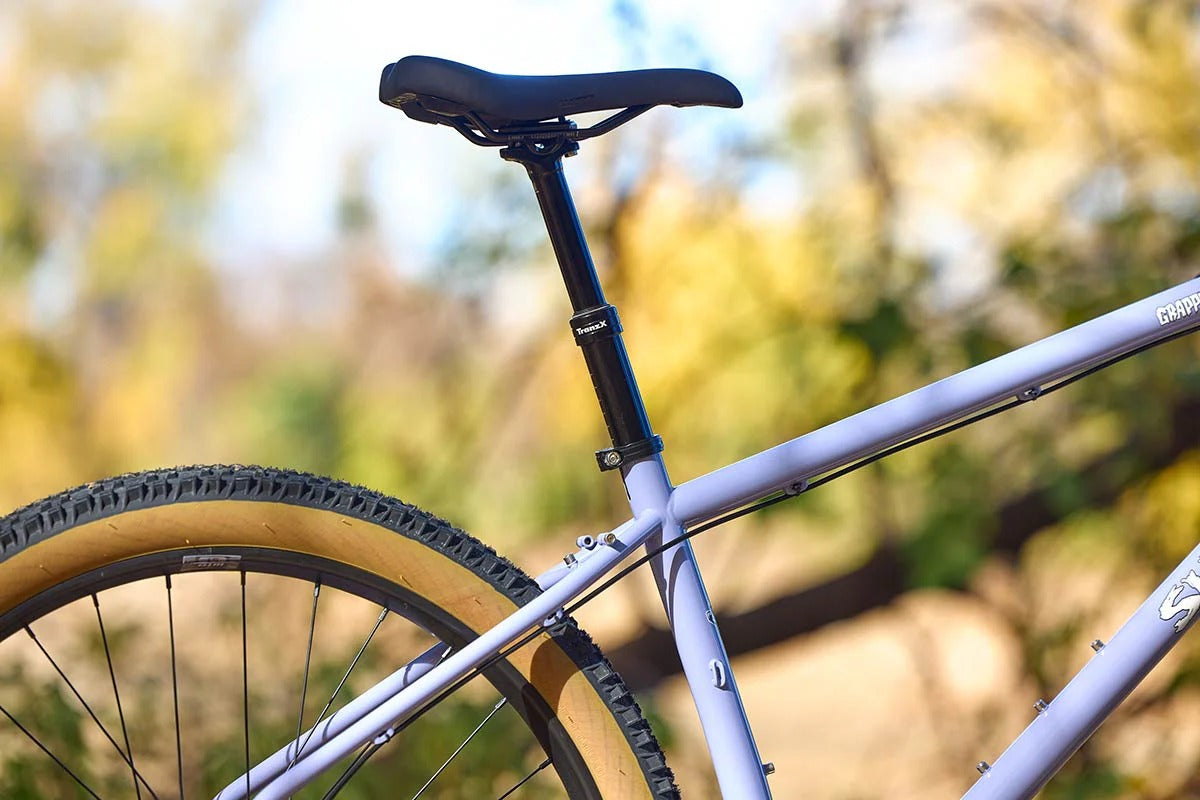

TranzX YSP15, 30.9, 100mm travel
Stem
Promax DA-296, 31.8mm
Grips/Bar Tape
Black Cork
Saddle
WTB Volt
Handlebar

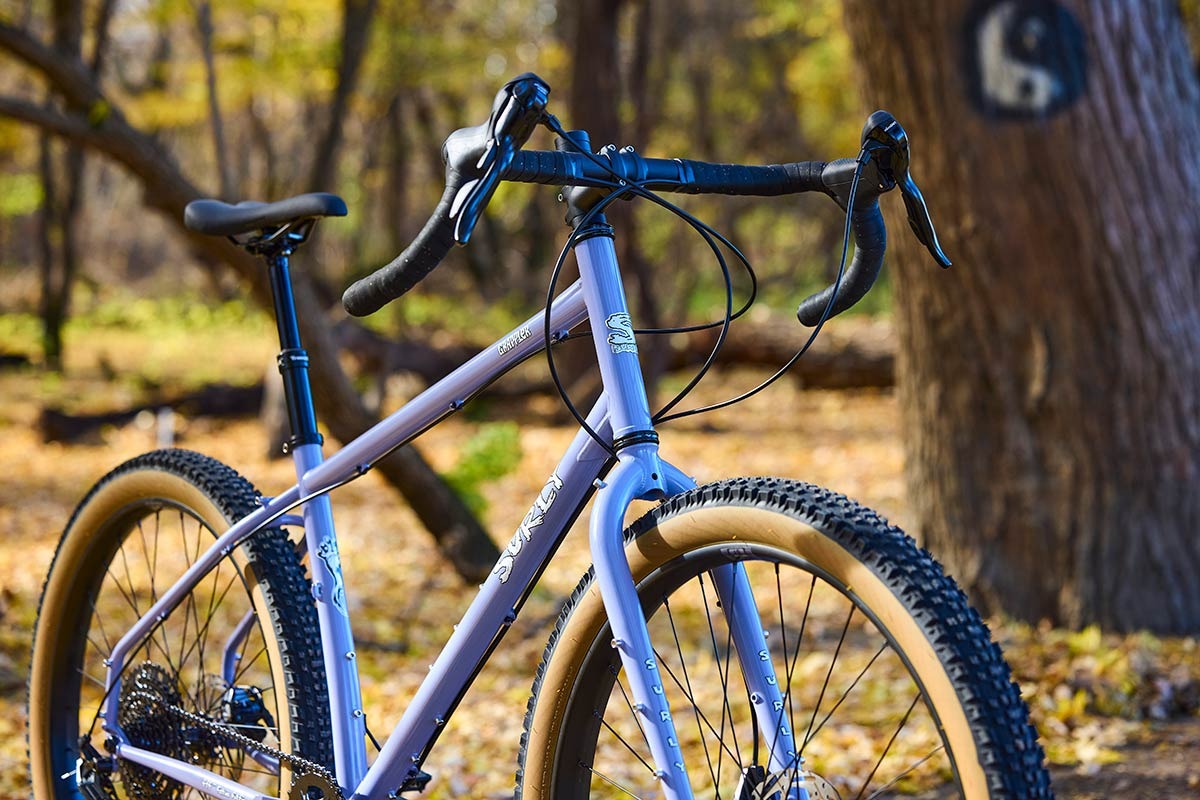

Salsa Cowchipper
Drivetrain
Front Derailleur
N/A
Rear Derailleur
microSHIFT ADVENT X
Cassette
microSHIFT ADVENT X, 11-48t, 10-spd
Chain
KMC X10
Crankset
Samox, 32t
Shifter
microSHIFT ADVENT X
Brake Levers
microSHIFT ADVENT X
Brake Calipers
Tektro Mira
Bottom Bracket
Samox BSA
Rotors
Tektro Front: 180mm, Rear: 160mm
Wheels
Front Tire
Teravail Ehline, 27.5 x 2.5", Light and Supple, Tan Sidewalls
Rear Tire
Teravail Ehline, 27.5 x 2.5", Light and Supple, Tan Sidewalls
Front Hub
Novatec 15 x 110mm, 6-bolt, 32h
Rear Hub
Novatec 12 x 148mm, 6-bolt, 32h
Spoke
14G Black
Rim
WTB ST i40 TCS 2.0
Weight
Complete Bike
30 lb. 5 oz. for Medium
*Specifications are subject to change without notice
Frame specs:
- Design Wheel/Tire Sizes27.5 x 2.5"
- Alternate Wheel/Tire Sizes29 x 2.2"
- Frame Construction100% Surly Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
- Fork Construction100% Surly Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
- Rigid Fork Length420mm
- Fork Offset50mm
- Axle to Crown420mm
-
Rear Spacing"Gnot-Boost" 145mm
12 x 142mm or 12 x 148mm (Surly axle included)
10 x 135mm with Surly 10/12 Adapter Washers (not included) - Rear Axle Size12 x 148mm (Surly axle included)
- Front Brake (Rotor)Disc - 51mm I.S. (203mm max rotor)
- Headset - UpperEC34/28.6
- Headset - LowerEC34/30
- Front Axle Size15 x 110mm (Surly axle included)
- Steerer TubeØ28.6mm
- Crown RaceØ30mm (1-1/8")
- Stem ClampØ28.6mm
- SeatpostØ30.9mm
- Dropper Post CompatibleYes
- Seatpost Clamp33.1mm
- Front Derailleur ClampØ34.9mm
- Front Derailleur TypeHigh direct mount top-pull (Ø34.9mm) 26mm offset adapter (not included) for 142 or 135mm rear hub spacing 29mm offset adapter (not included) for 148mm rear hub spacing
- Bottom Bracket73mm BSA, threaded
- Crankset (Max Ring)1x (mtn): 36T / 2x (mtn): 36/26T / 1x (Boost): 38T / 2x (Boost): 39/32T
- Bottle Mounts3-pack mounts on upper and lower downtube; seat tube bottle mounts on frame sizes S–XL
- Fork Mounts3-pack mounts on each fork blade, upper and lower threaded rack mounts
- Front Fender Mounts Yes

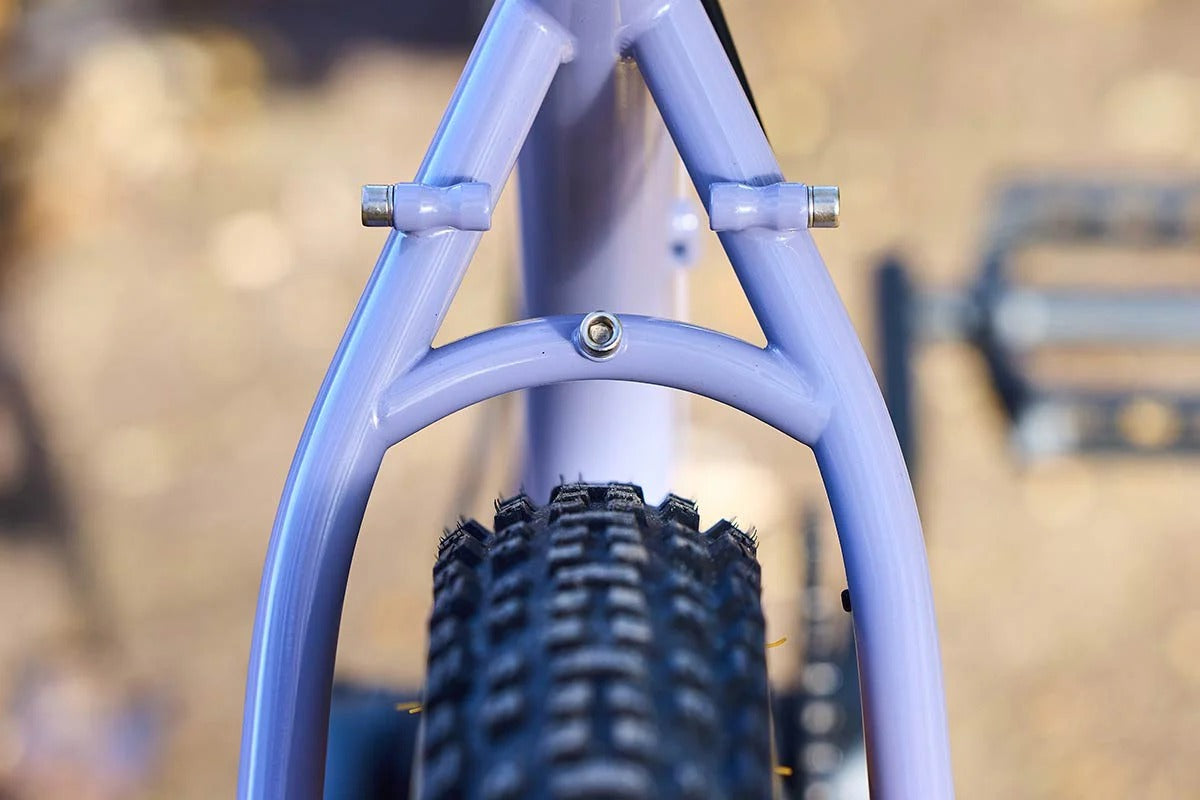

- Rear Fender Mounts Yes
