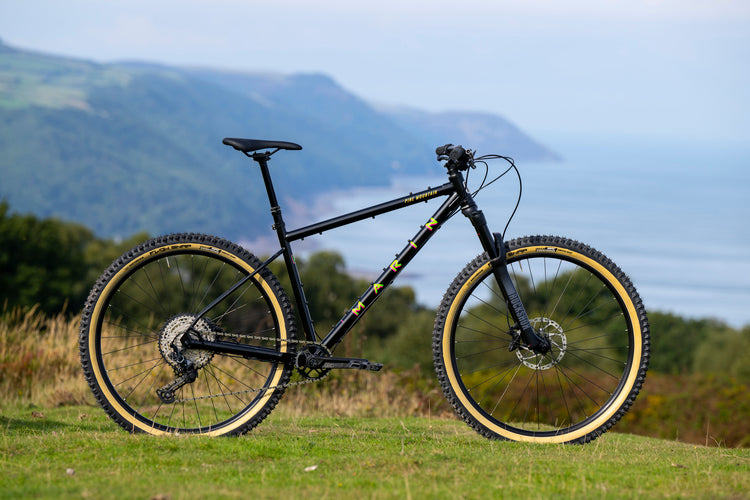

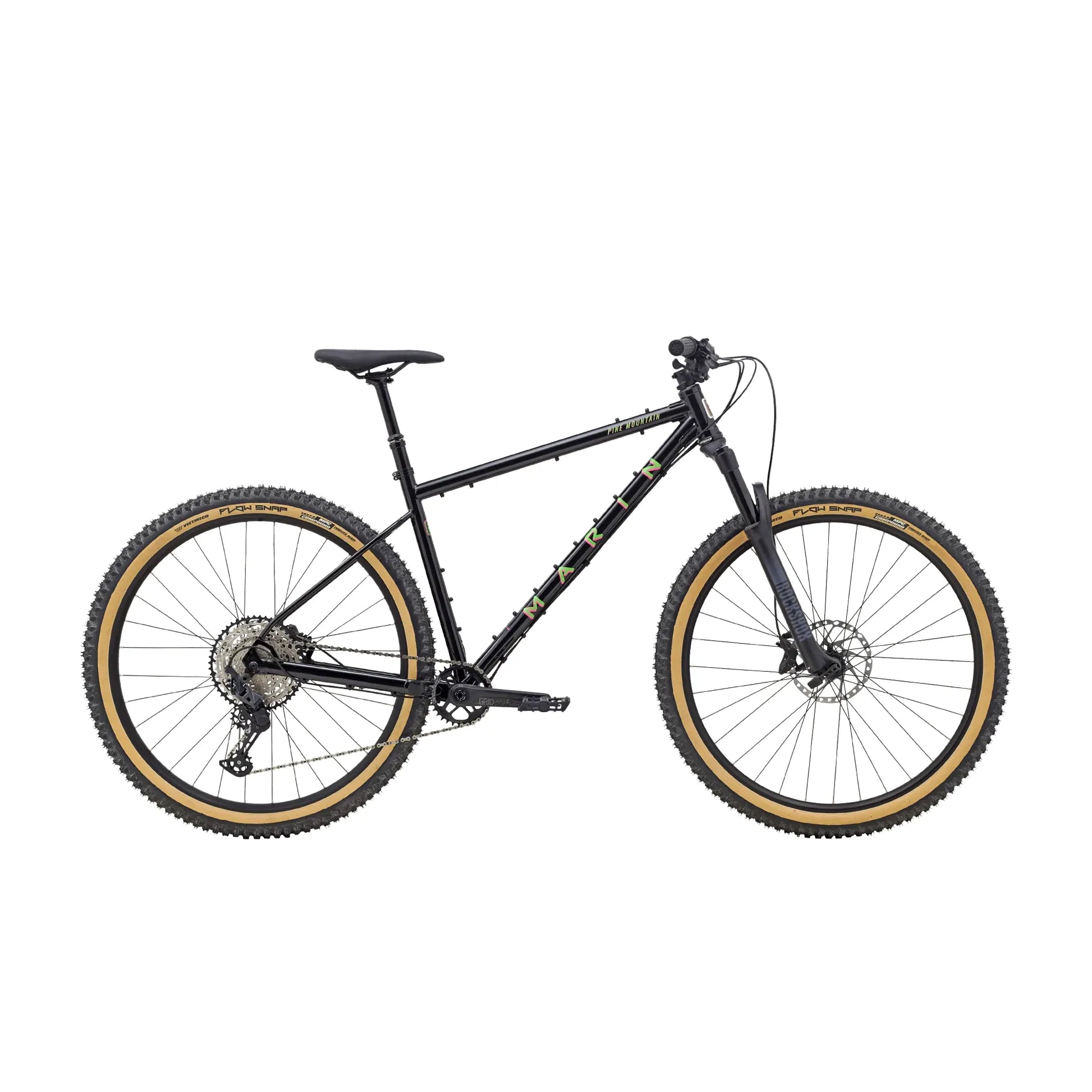

The Pine Mountain 2 is a classic steel hardtail with modern trail capabilities for hardtail purists pushing the limits and seeking adventure.

Key upgrades over the Pine Mountain 1:

Series 3 CrMo frame w/12x148mm custom cast thru-axle dropouts

RockShox FS 35 fork

Shimano SLX 12 speed drivetrain & FSA Grid crankset

Shimano MT520 brakes

The Marin Pine Mountain is a fresh take on what an adventure trail bike should be capable of. The Series 2 and Series 3 CrMo frames have been constructed around 29x2.6” wheels/tires, with geometry blending the stability and raucous fun of aggressive trail geometry with all day comfort and pedalability for a wide variety of trail. A plethora of eyelets on the frame and the Bedroll Bar let you customize your bike and gear to each and every adventure, and wide-range drivetrains and sturdy trail suspension forks make sure you can get out and back with a smile and a story worth telling.

Come test ride the Marin Pine Mountain 2 today. It's always free and no appointments are necessary

Sizing Guide:

Small 5'2" - 5'7"

Med. 5'5" - 5'10"

Large 5'8" - 6'1"

XL 6'0" - 6'4"

** For accurate fitting come see one of our professionals in store.

STEEL IS REAL

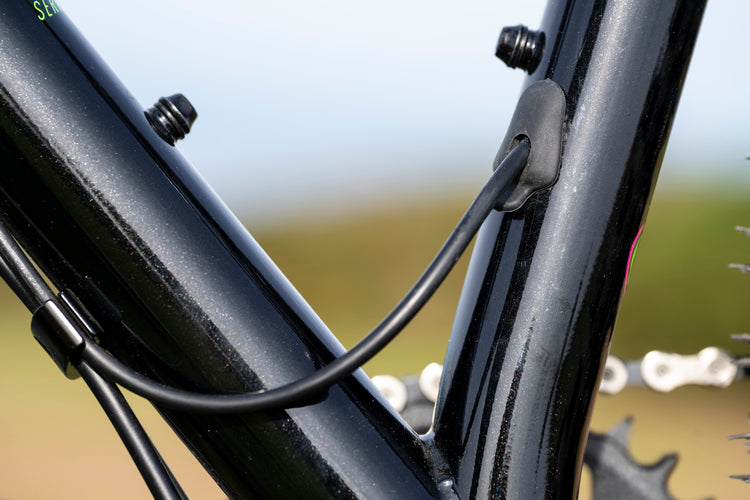

The Pine Mountain 1 uses a butted and formed Series 2 4130 CrMo frame with Boost 141mm dropouts, full fender and rack mounts, and tons of bosses for a wide variety of gear mounting options. Step up to Series 3 tubing and cast thru-axle dropouts with the Pine Mountain 2. Both Pine Mountain models feature internal dropper post routing.

BIKEPACKING ABILITIES

The Pine Mountain features brazed-in cargo attachment points throughout the front triangle for carrying all of the water and gear one needs for a proper adventure. The Marin-designed Bedroll Bar features a 50mm rise and a long, straight top bar for cleanly mounting handlebar packs away from cables and controls, and also mounting, lights, phones, cycle computers, or whatever else catches your fancy. Available exclusively on the Pine Mountain and Pine Mountain E series.

TRAIL GEOMETRY

The Pine Mountain Trail Geometry is a mix between agility for trail riding, and all day comfort for bikepacking. Short chainsstays keep a shorter wheelbase for that active ride, while a 66.5 degree head angle makes for confident steering with or without the weight of gear.

TUBELESS READY 29”

Tubeless-ready 32mm internal dimension rims and 2.6” tires give the Pine Mountain a comfortable ride with huge traction and ability to roll up and over large obstacles, while still being light enough to pedal and fast enough to rip singletrack.

SPECIFICATIONS

FRAME

Series 3 Double Butted and Heat Treated CrMo, 29" Wheels, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts

FRONT SUSPENSION

RockShox 35 Gold RL, 120mm Travel, DebonAir, Alloy Tapered Steerer, 110x15mm Boost Spacing, Maxle Lite, 44mm Offset

RIMS

Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible

HUB, REAR

Shimano, Microspline 148x12mm, Centerlock Disc, 32H

HUB, FRONT

Forged Alloy, 110x15mm, Sealed Cartridge Bearings, Centerlock Disc, 32H

SPOKE, NIPPLES

14g Black Stainless Steel

TIRES

Vee Tire Flow Snap, 29x2.6", Folding Bead, Tubeless Ready

DERAILLEUR, REAR

Shimano SLX 12-Speed

SHIFT LEVER

Shimano SLX 12-Speed

CRANKSET

FSA Grid, Modular 1x, 32T Direct Mount MegaTooth Chainring

BOTTOM BRACKET

FSA Outboard Cartridge Bearings

CHAIN

KMC X12

CASSETTE

Shimano SLX M7100 Cassette, 12-Speed, 10-51T

BRAKE, FRONT

Shimano MT520, 4-Piston, Hydraulic Disc, 180mm Rotor

BRAKE, REAR

Shimano MT500, 2-Piston, Hydraulic Disc, 160mm Rotor

BRAKE LEVERS

Shimano MT500 Hydraulic

HANDLEBAR

Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep

STEM

Marin 3D Forged Alloy, 35mm

GRIPS

Marin Bear Paw Locking

HEADSET

FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST

TranzX Dropper Post, YSP23 w/ 1x Remote, Size S 150mm Travel, All Other Sizes: 170mm Travel, 30.9mm

SADDLE

Marin Pine Mountain Trail

PEDALS

Nylon Platform

EXTRAS

Bolt-On Thru-Axle
