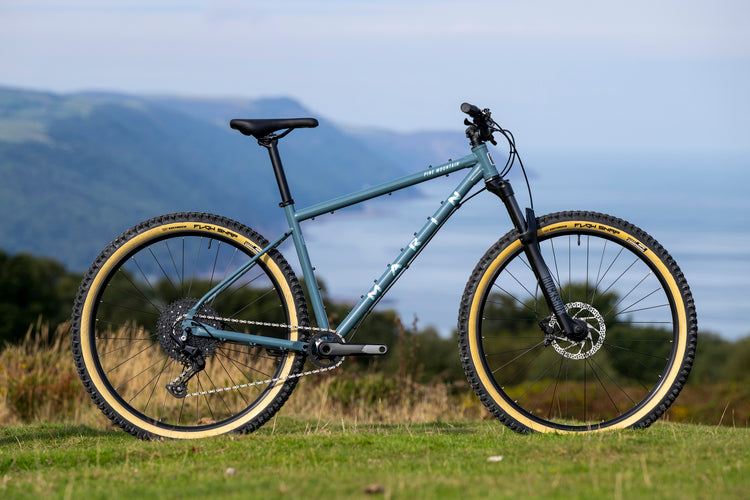

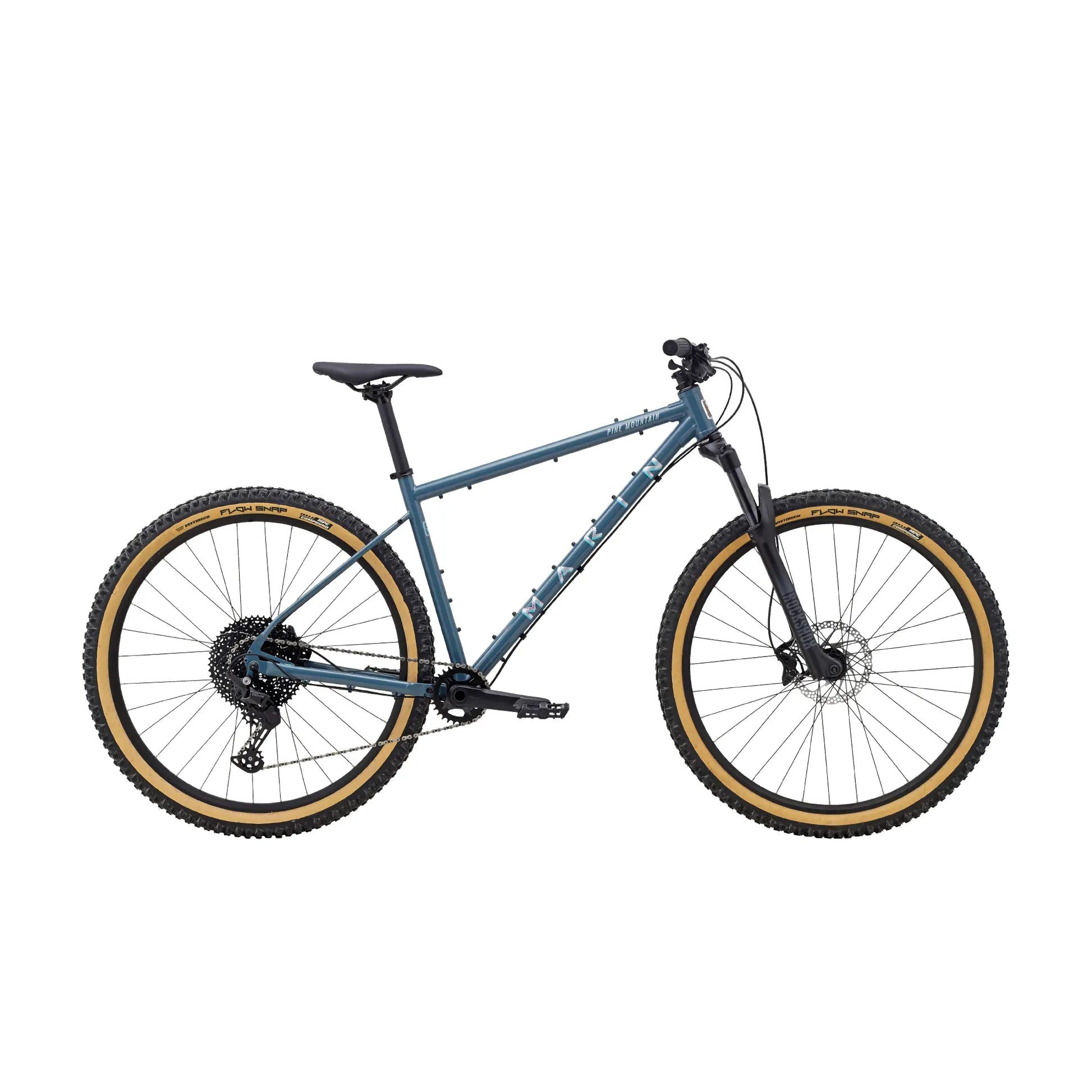

The Marin Pine Mountain 1 is our budget-friendly steel bikepacking mountain bike hardtail. It features fully updated geometry, a series 2 double-butted CrMo frame and all the bikepacking mounts you’ll ever need. All that, combined with a 120mm RockShox Recon RL fork, grippy and dependable Vee Tire co. Flow Snap 2.6” tire, Shimano shifting and our much-loved Marin Bedroll handlebar.
SPECIFICATIONS
Frame

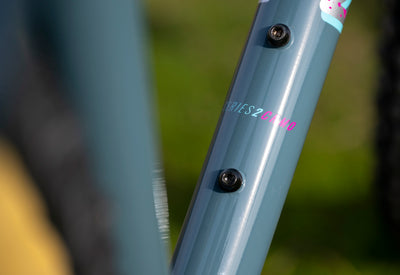

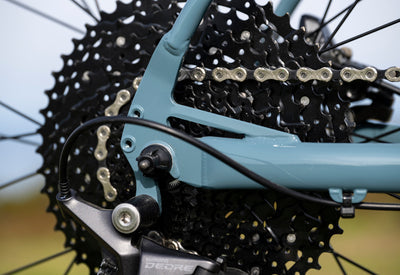

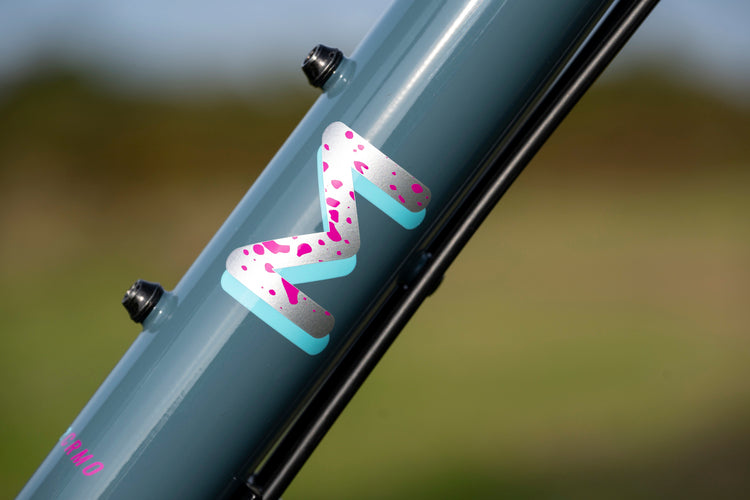

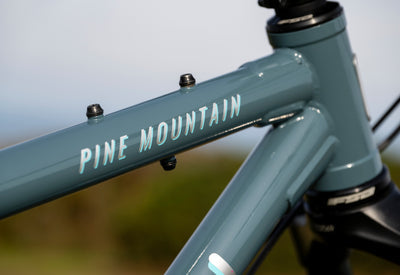

Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts
Rims
Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
Hub, Rear
Forged Alloy, 141x9mm, Disc Specific, 32H
Hub, Front
Forged Alloy, 110x15mm, Disc Specific, 32H
Spokes
14g Black Stainless Steel
Tires
Vee Tire Flow Snap, 29x2.6", Wire Bead
Derailleur, Rear
Shimano Deore, RDM5100, 11-Speed
Derailleur, Front
-
Shift Lever
Shimano Deore, SLM5100, 11-Speed
Crankset
Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring
Chain
KMC X11
Brakes, Front
Tektro HDM535, 4-Piston, Hydraulic Disc, 180mm Rotor
Brakes, Rear
Tektro HDM535, 4-Piston, Hydraulic Disc, 160mm Rotor
Brake Levers
Tektro
Handlebar

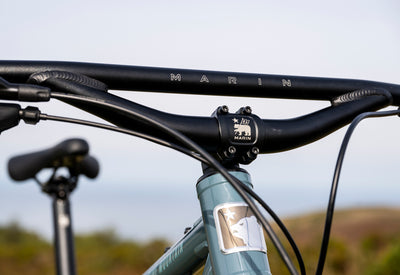

Marin Bedroll Bar, 50mm Rise, 780 Width, 10? Backsweep, 6? Upsweep
Stem
Marin 3D Forged Alloy, 35mm
Grips
Marin Grizzly Lock On
Headset
FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost
Marin Alloy, 30.9mm
Saddle
Marin Pine Mountain Trail
