Marin

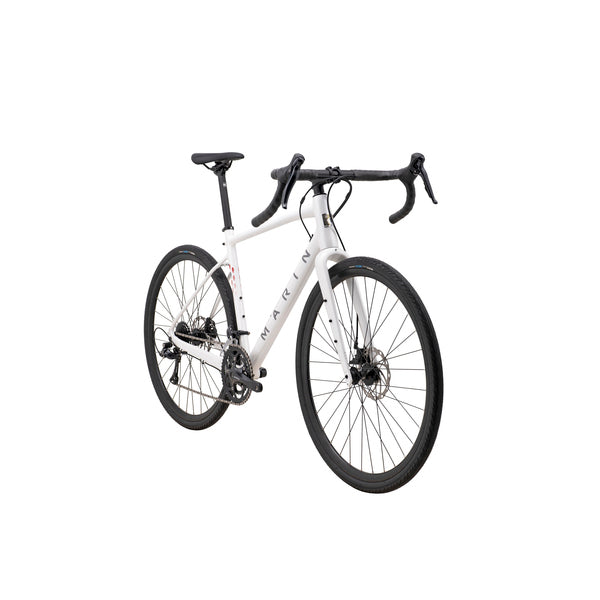

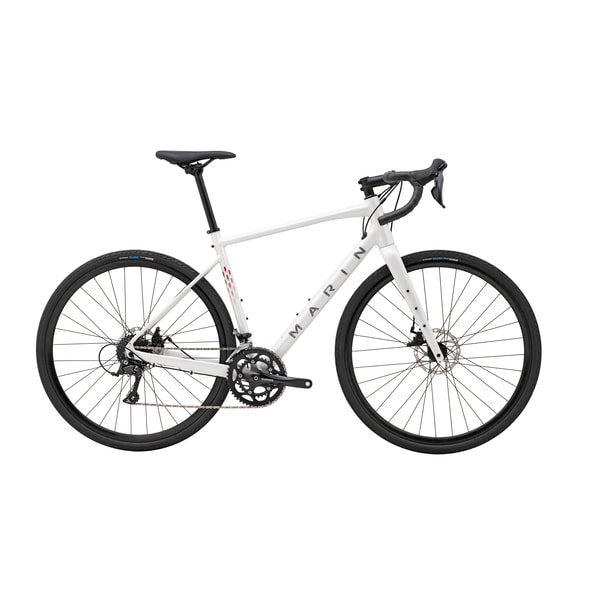

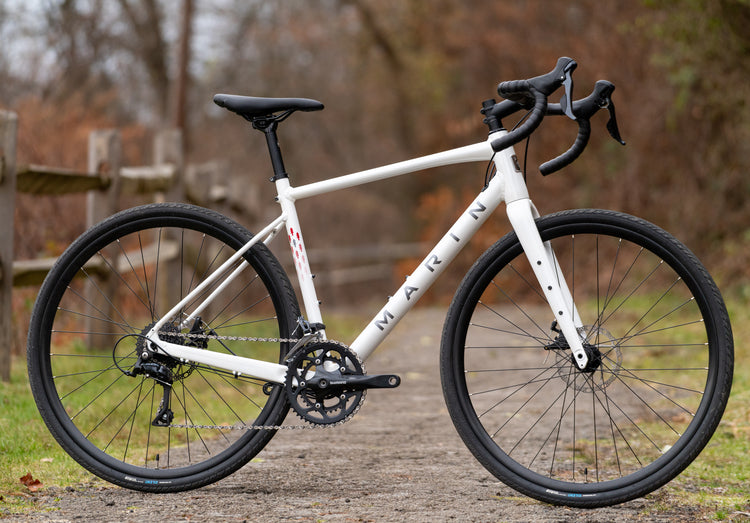

Marin Gestalt 1
Marin Gestalt 1
Regular price
$1,599.99 CAD
Regular price
Sale price
$1,599.99 CAD
Unit price
/
per
Couldn't load pickup availability

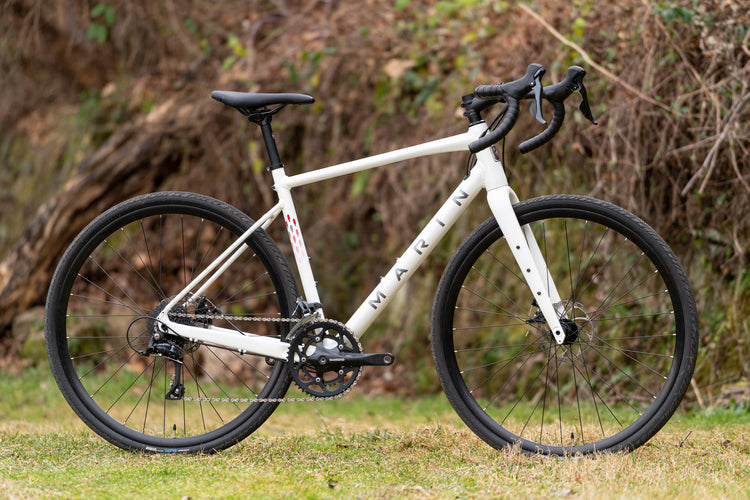

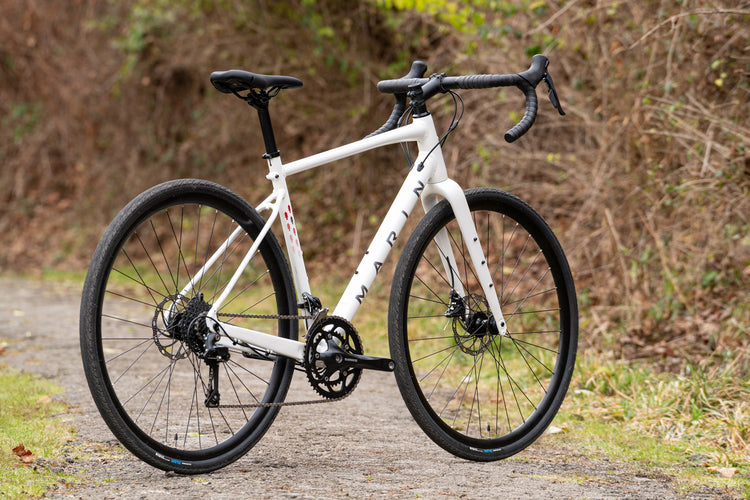

The Marin Gestalt takes you Beyond Road.
Tarmac and trail, rough roads and muddy commutes, bike packing, touring and adventure. Daily trips and weekend escapes are all within the Gestalt’s wheelhouse, with no stopping when the asphalt turns to dirt.
A cut above the entry-level Gestalt, the Gestalt 1 steps up to a Series 3 aluminum frame and full carbon fiber fork, all while still keeping the value high and the price tag low. Vee Tire Co tires, 2x9-speed Shimano Sora drivetrain, Tektro mechanical disc brakes and plenty of quality Marin components all add up to bags of value and heaps of fun.
Key upgrades over Gestalt:
- Series 3 Beyond Road frame w/highly formed & butted custom tubeset
- Marin full carbon fork
- Shimano Sora 2x9 drivetrain
Sizing Guide:
- 50cm - 4'11" - 5'4"
- 52cm - 5'3" - 5'6"
- 54cm - 5'6" - 5'9"
- 56cm - 5'9" - 6'0"
- 58cm - 6'0" - 6'2"
- 60cm - 6'2" - 6'4"
** For accurate fitting come see one of our professionals in store.
SPECIFICATIONS
| Component | Specification |
|---|---|

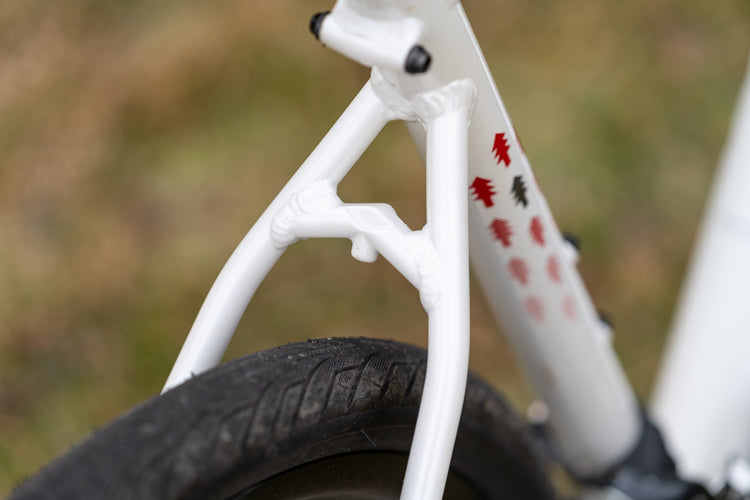

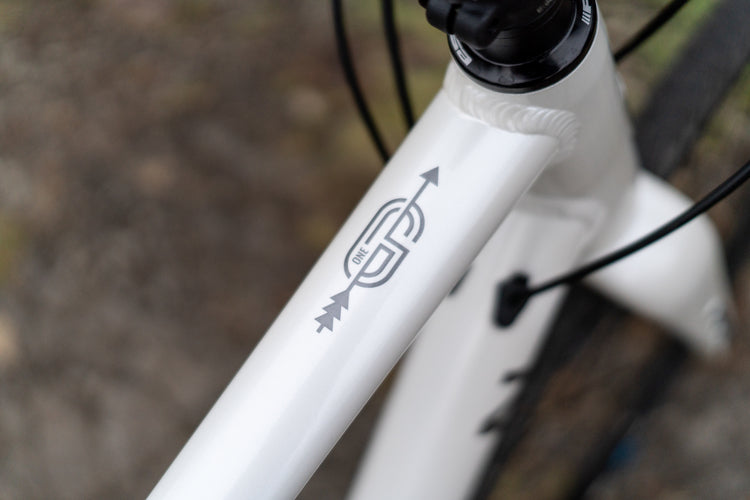

| Frame | Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |

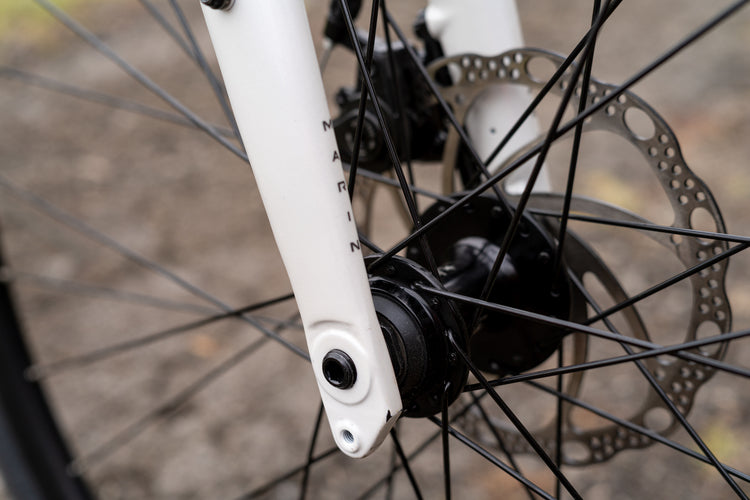

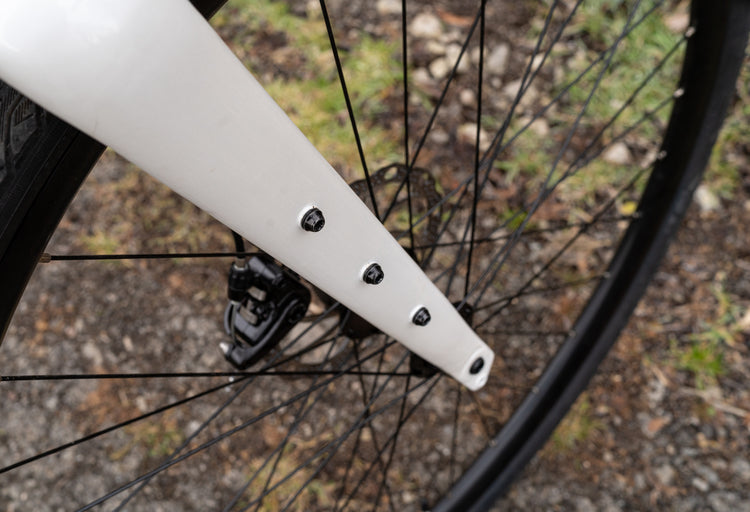

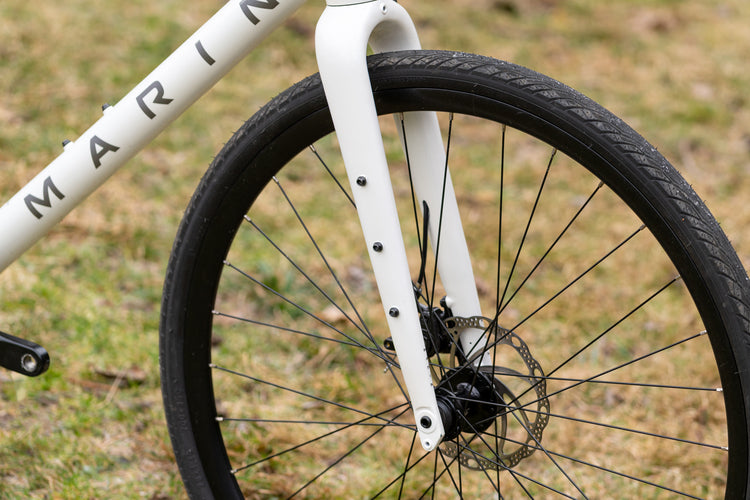

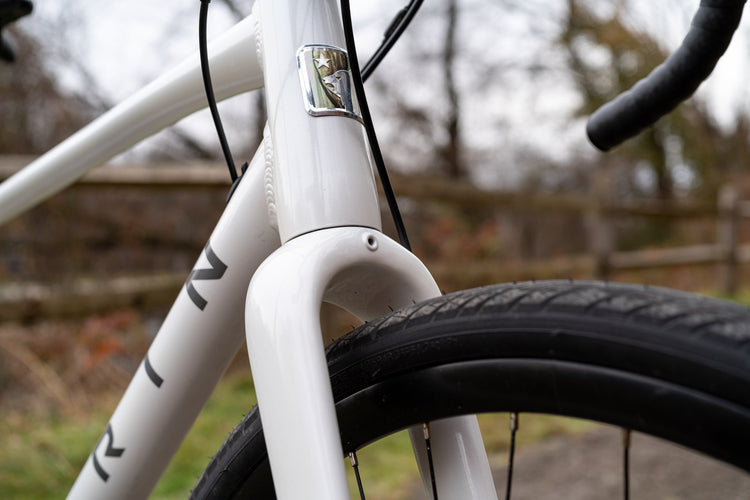

| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Rims | Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible |
| Hub, Rear | Forged Aluminum Alloy, 6-Bolt Disc, 32H |

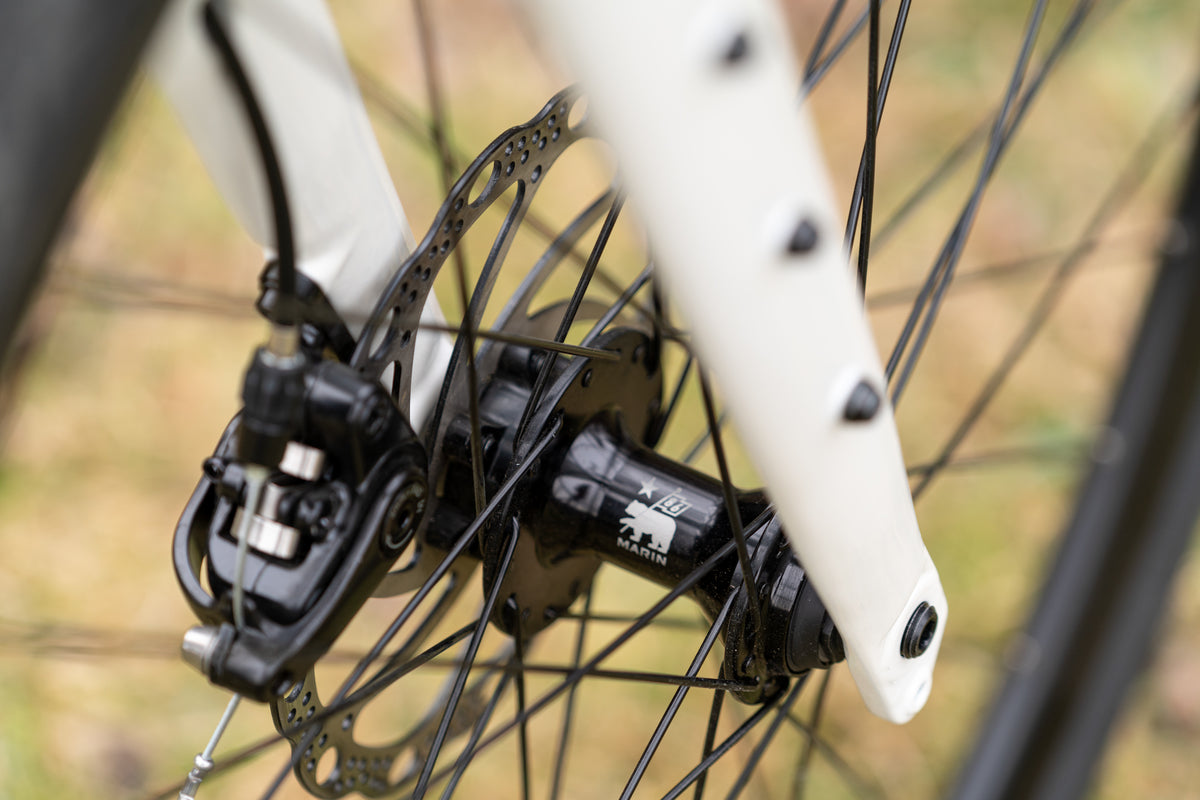

| Hub, Front | Forged Aluminum Alloy, 6-Bolt Disc, 32H |
| Spoke, Nipples | 14g Black Stainless Steel |
| Tires | Vee Tire Co., Zilent, 700x35 |
| Derailleur, Rear | Shimano Sora, 9-Speed |
| Derailleur, Front | Shimano Sora |
| Shift Lever | Shimano Sora, 2x9-Speed |
| Crankset | Shimano R345 Octalink Compact, 50/34T |
| Bottom Bracket | Shimano Octalink V2 Cartridge |
| Chain | KMC X9 |
| Cassette | SunRace 9-Speed, 11-32T |

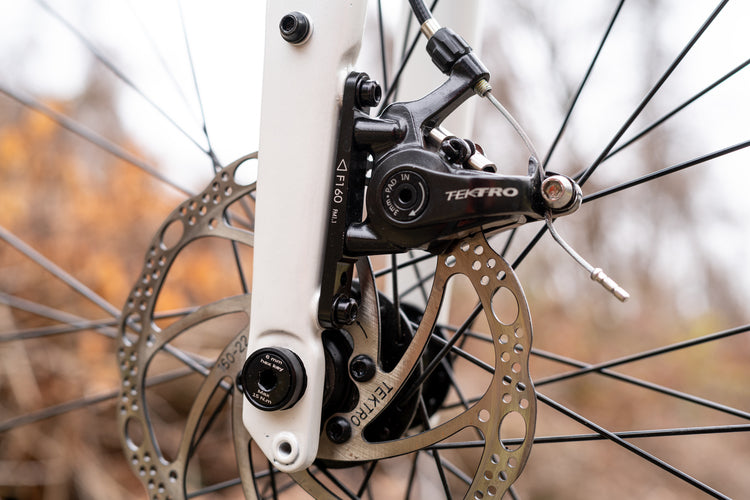

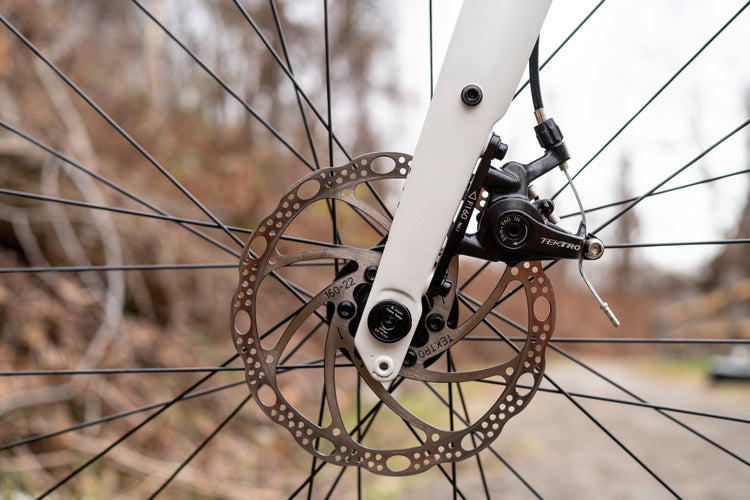

| Brake, Front | Tektro MD-C550 Dual Piston Road Mechanical, 160mm Rotor |

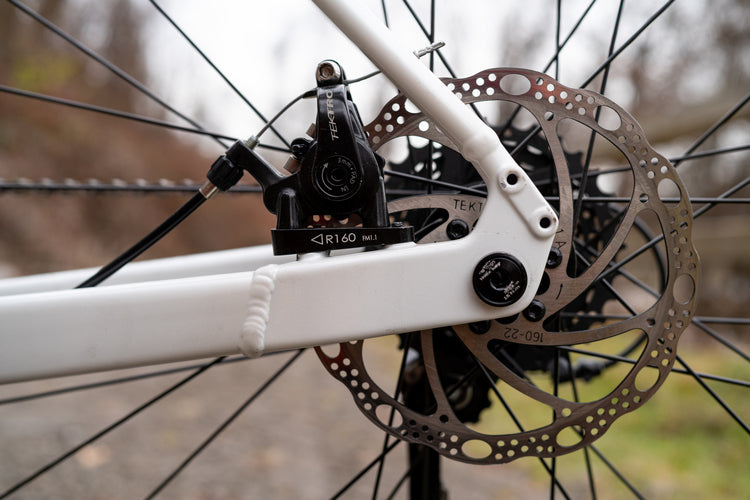

| Brake, Rear | Tektro MD-C550 Dual Piston Road Mechanical, 160mm Rotor |
| Brake Levers | Shimano with Integrated Shifters |

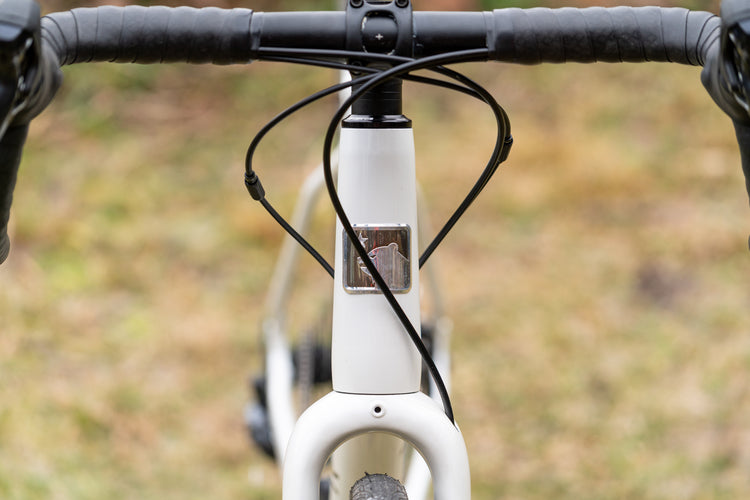

| Handlebar | Marin Butted Alloy, Compact 12° Flared Drop |
| Stem | Marin 3D Forged Alloy |
| Grips | Marin Perforated Tape |
| Headset | FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8" x 1 1/2" |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Beyond Road Concept |
