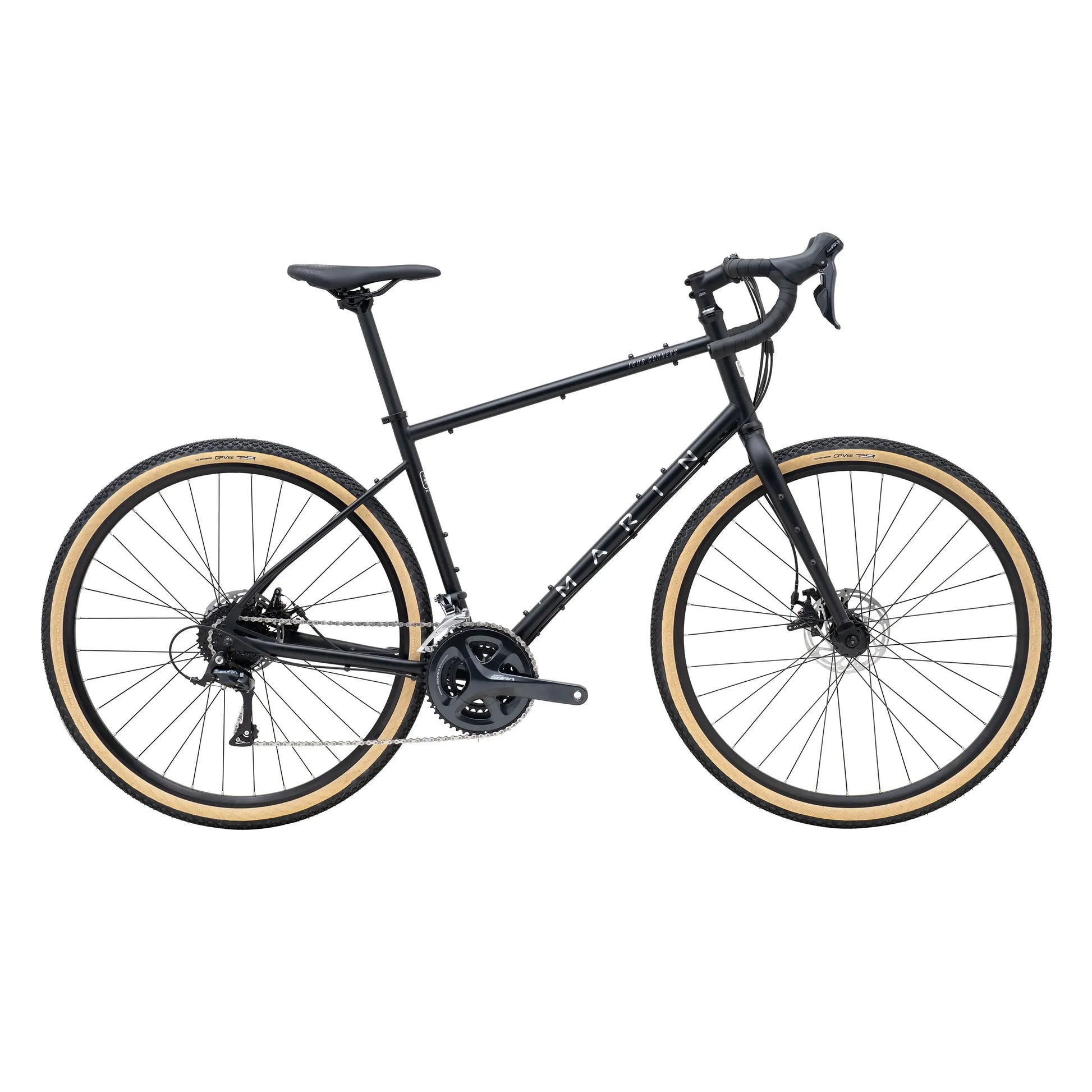

Marin Four Corners 1 (Sora)
Marin Four Corners 1 (Sora)
Couldn't load pickup availability

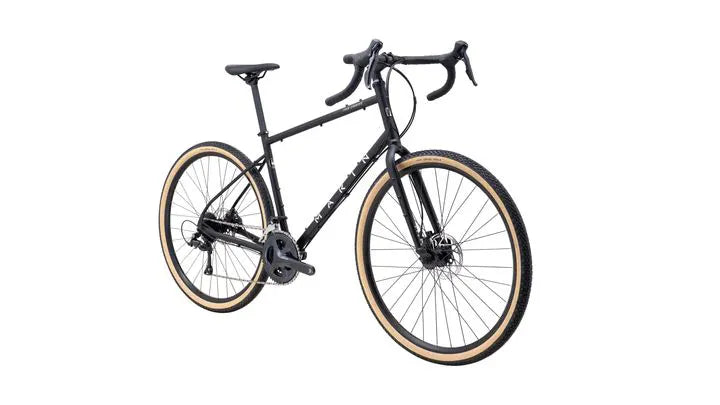

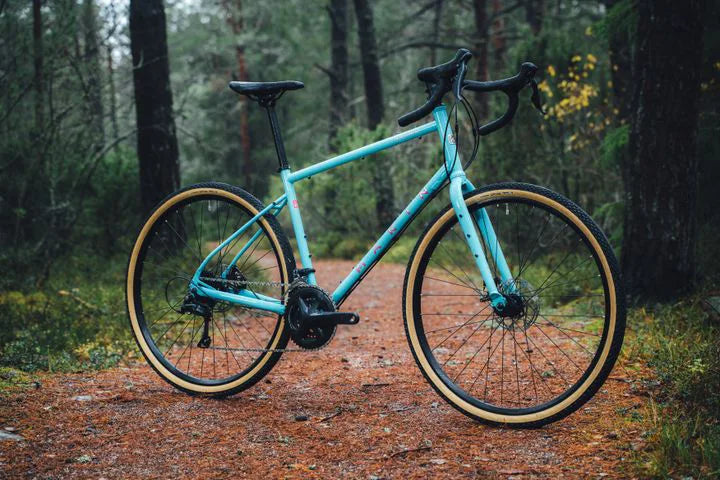

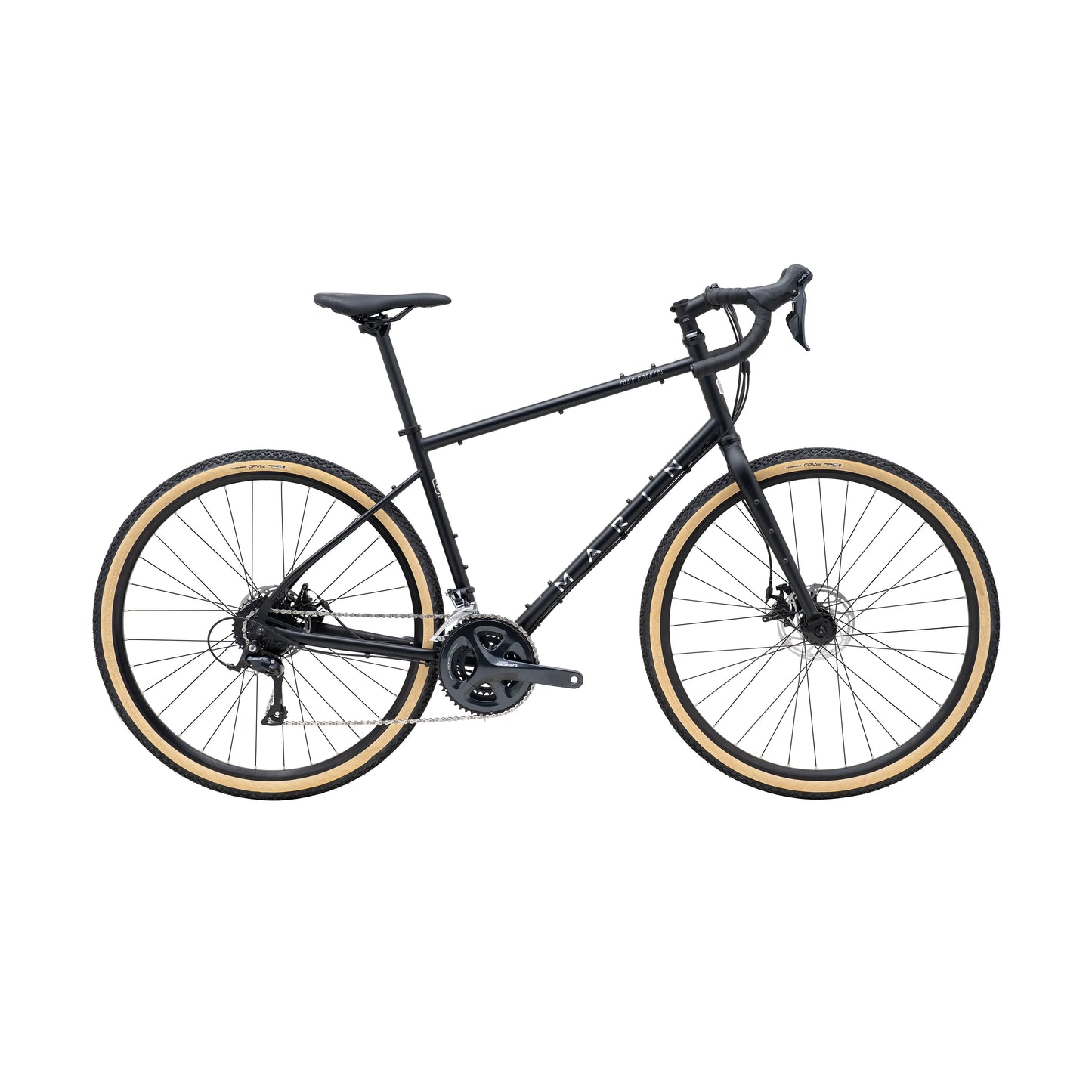

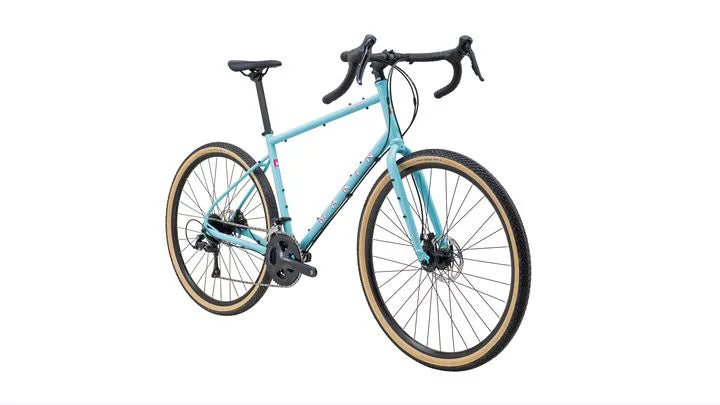

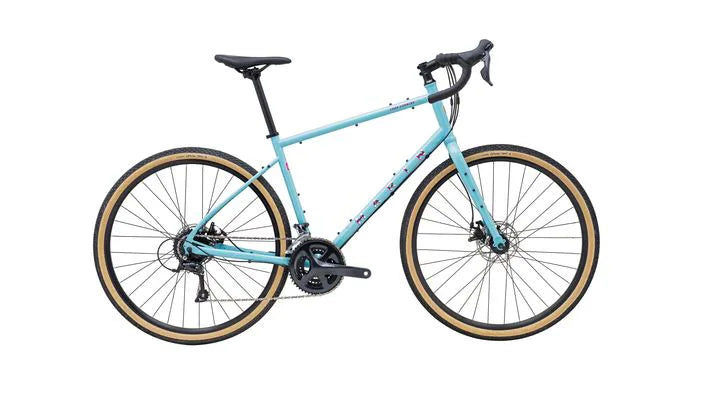

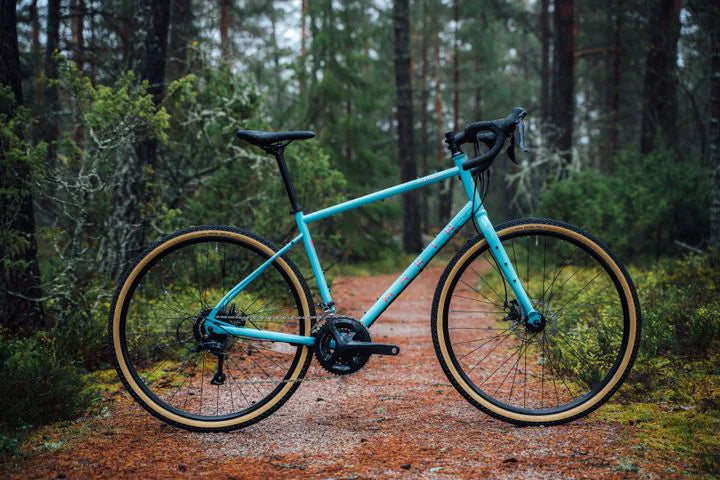

The Marin Four Corners has no problems with the Midweek commute or weekend adventures. Its our steel-framed explorer that’s as comfortable on the asphalt as it is in the dirt.

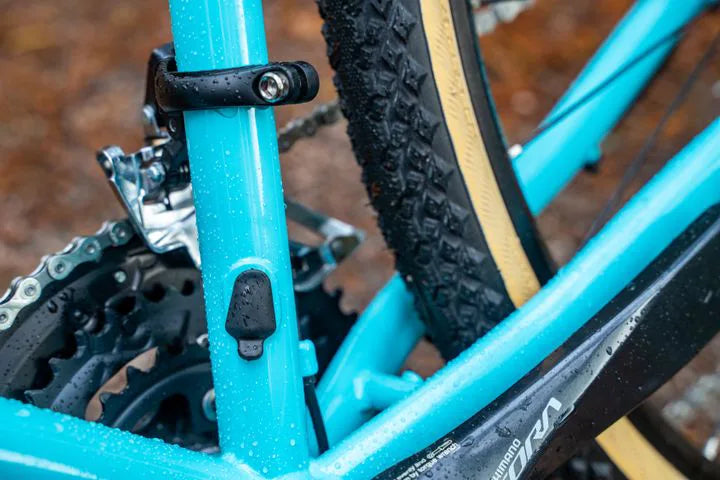

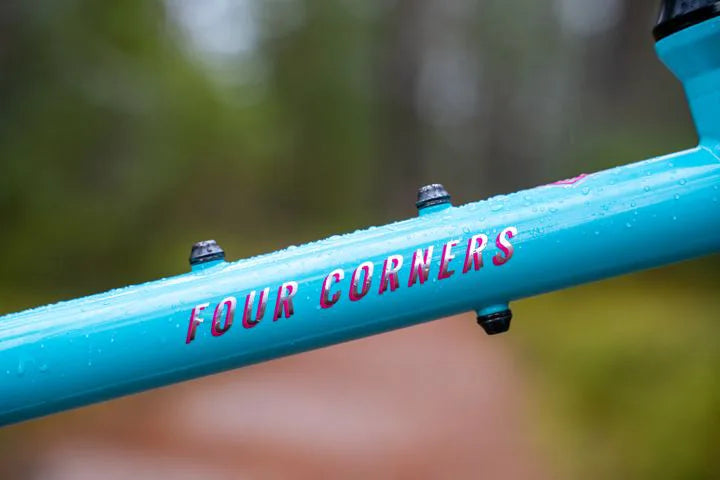

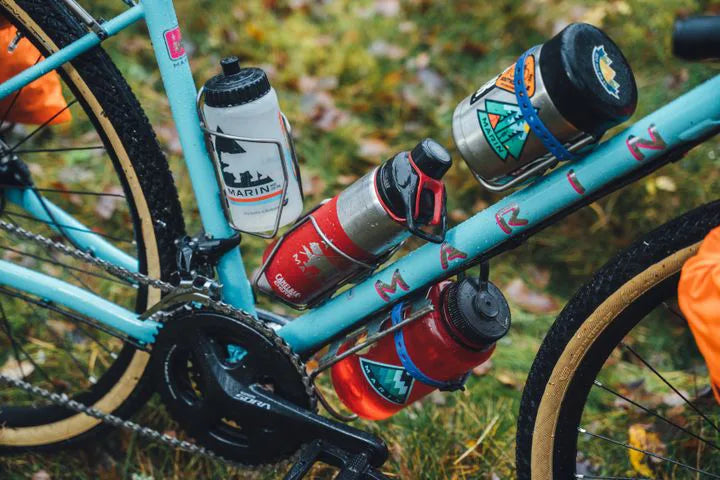

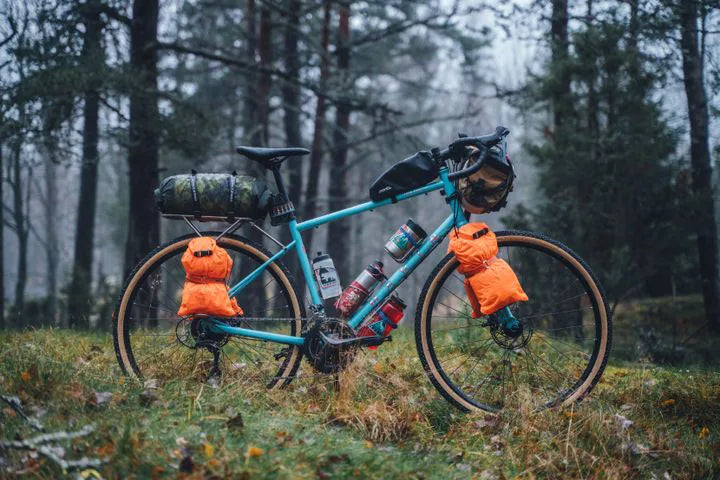

A butted 4130 CrMo steel frame and fork are designed to be comfortable on rough roads but to also handle fully loaded touring and bikepacking. We’ve included six bottle mounts, rack and fender eyelets, lowrider fork mounts, generous tire clearance and disc brakes to set you up for all conditions and all terrains.
Don’t be fooled, that classic frame material doesn’t mean low-tech. We’ve used biometric fit data to offer five different frame sizes, with size-matched 650b or 700C wheels to perfectly suit riders between 4’11” – 6’4”. A high front-end creates all-day comfort and heads-up visibility, off-road-ready geometry means you won’t skip a beat when you head off the asphalt and explore Beyond Road.
SIZING GUIDE
- XS - 4'11" - 5'4"
- S - 5'2" - 5'7"
- M - 5'5" - 5'11"
- L - 5'8" - 6'2"
- XL - 6' 0" - 6'4"
** For accurate fitting come see one of our professionals in store.
SPECIFICATIONS
| Component | Specification |
|---|---|

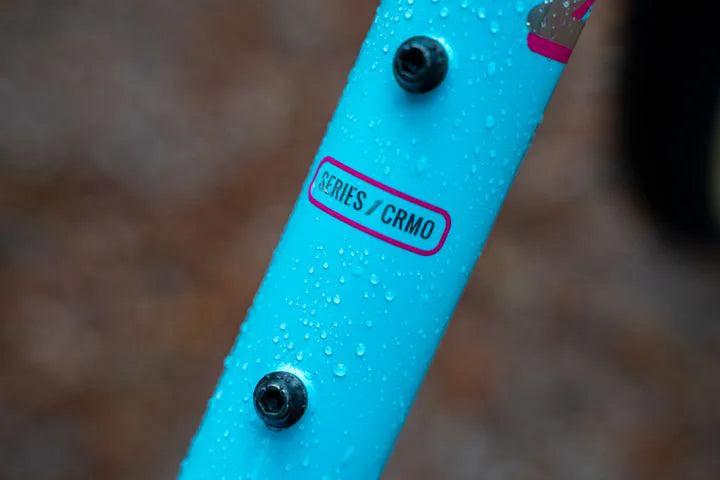

| Frame | Series 1 CrMo, Size-Specific Wheels (XS, S = 650B; M, L, XL = 700C), Biometric Geometry, Fender and Rack Mounts, Disc Mount, Plentiful Gear Mounts (custom bag templates) |

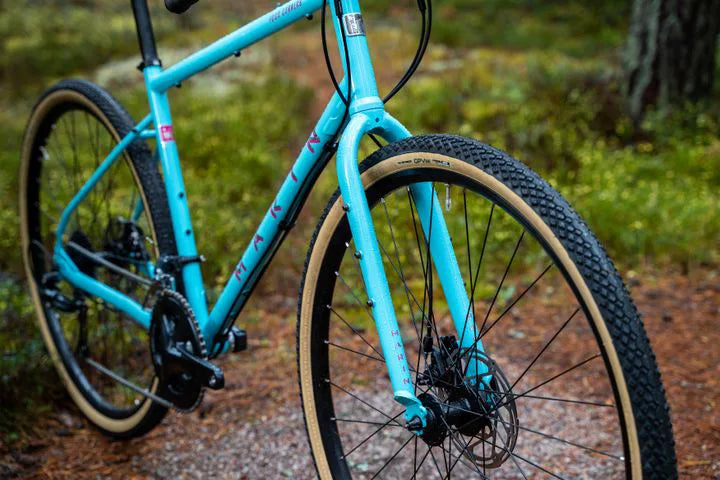

| Fork | Series 1 CrMo, Fender, Rack, and Bottle Cage Eyelets, IS Disc Mount |
| Rims | Marin Aluminum, Double Wall, Disc Specific |
| Hub, Rear | Forged Aluminum Alloy, Disc, 32H |
| Hub, Front | Forged Aluminum Alloy, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Tire | Vee Tire Co., GPVee, 700/650x40 |
| Derailleur, Rear | Shimano Sora 9-Speed |
| Derailleur, Front | Shimano Sora |
| Shift Levers | Shimano Sora ST300, 3x9-Speed |

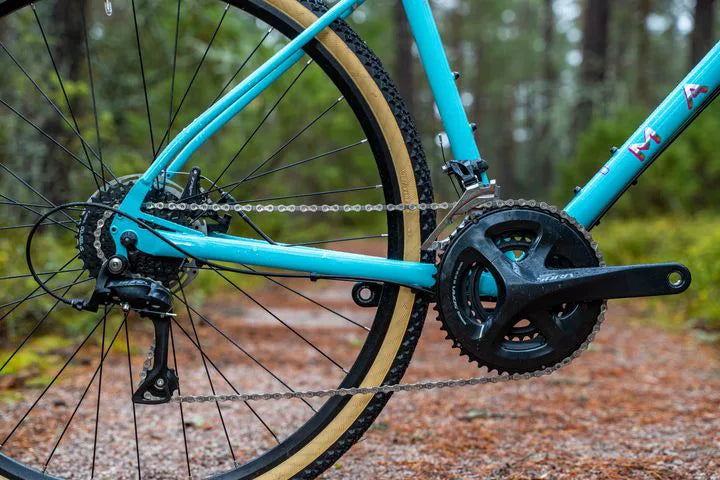

| Crankset | Shimano Sora FC3030, 50-39-30T |
| Bottom Bracket | Shimano |
| Chain | KMC X9 |
| Cassette | Shimano HG200, 9-Speed, 11–34T |

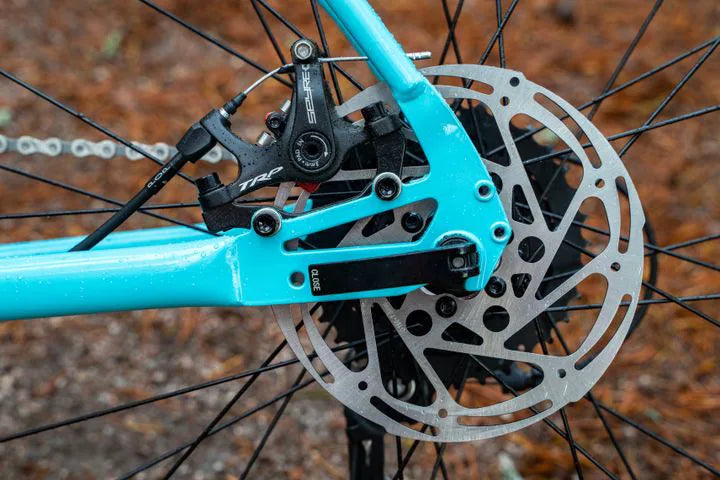

| Brake, Front | Tektro Spyre-C Road Mechanical Disc, 160mm Rotor |
| Brake, Rear | Tektro Spyre-C Road Mechanical Disc, 160mm Rotor |
| Brake Levers | Shimano w/ Integrated Shifters |
| Handlebar | Marin Butted Alloy, Compact 16º Flared Drop |
| Stem | Marin 3D Forged Alloy |
| Grips | Marin Comfort Bar Tape, Shock Absorbing Gel Pads |
| Headset | FSA No.8D, Sealed Cartridge Bearings |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin MTB |
