With a lightweight aluminum frame, a trail-capable suspension fork, MTB tires and all-condition disc brakes, the Bolinas Ridge XC range of bikes has everything you need to break out onto the trails and push your own boundaries.

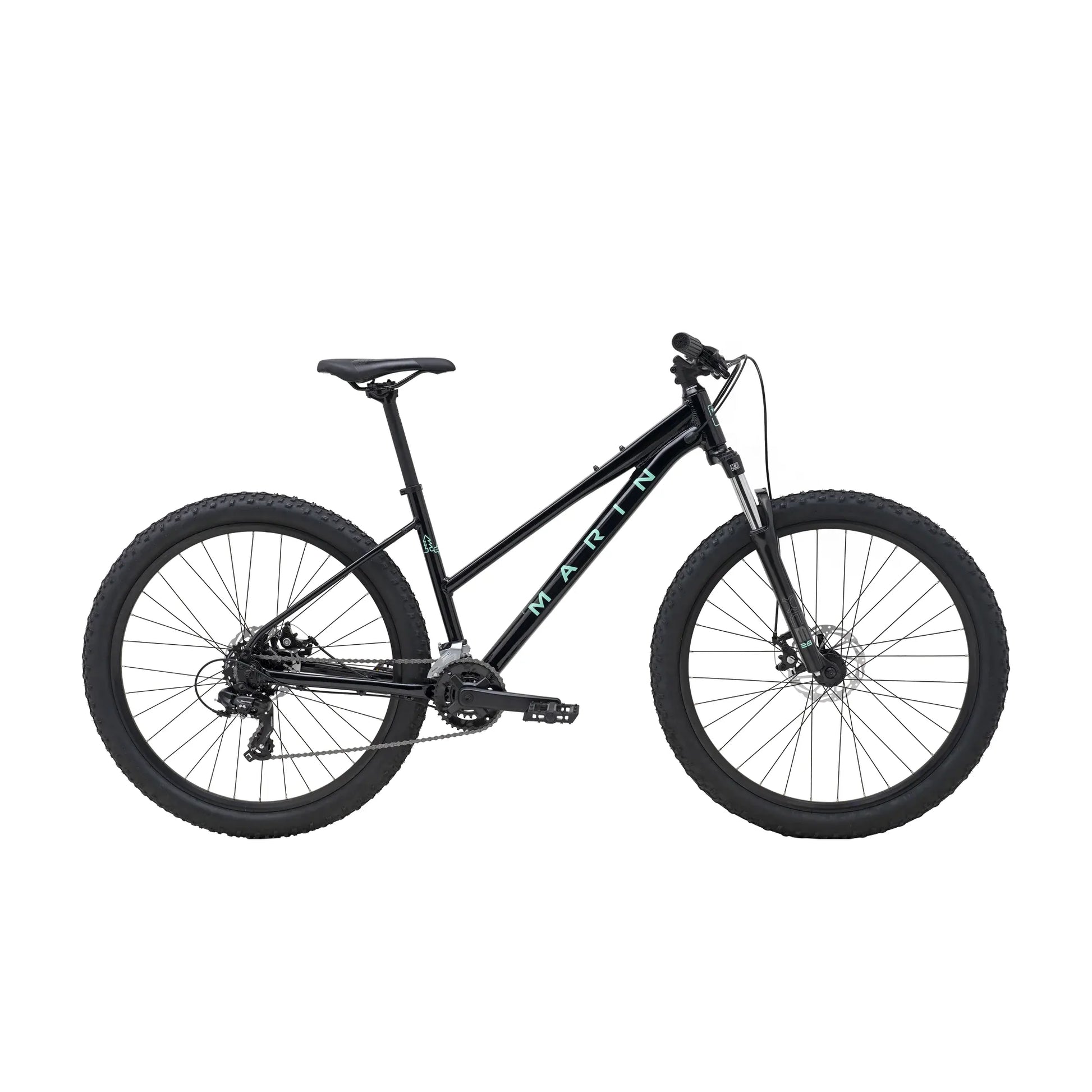

The Bolinas Ridge ST 1 is the best value model in the ST family, offering bags of bang for very few bucks. Components include powerful Tektro mechanical disc brakes, an SR/Suntour suspension fork and reliable and grippy off-road tires. This new step-thru frame is only available with 27.5 wheels across the XS - M frame size to keep it as ergonomically accessible as is possible.
Frame
Series 1 6061 Aluminum, 27.5”/29" Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes
Front Suspension
SR Suntour XCE Disc, 100mm Travel, Preload Adjustment, 46mm Offset
Rims
Marin, Double Wall Alloy
Hub, Rear
Forged Alloy, Disc, 32H
Hub, Front
Forged Alloy, Disc, 32H
Spokes
14g Black Stainless Steel
Tires
MTB, 27.5/29x2.25"
Derailleur, Rear
Shimano Tourney, 7-Speed
Derailleur, Front
Shimano FD-TX600
Shift Lever
Shimano Tourney 2x7-Speed
Crankset
Alloy Crank, Steel Chainrings, 36/22T
Chain
KMC Z8
Brakes, Front
Tektro MDM280 Mechanical Disc, 160mm Rotor
Brakes, Rear
Tektro MDM280 Mechanical Disc, 160mm Rotor
Brake Levers
Shimano w/ Integrated Shifters
Handlebar
Marin 31.8 Riser, 12mm Rise, 780mm Width
Stem
Marin Alloy, 31.8mm, 45mm
Grips
Marin MTB, Closed End
Headset
FSA No.10-P
Seatpost
Marin Alloy, 27.2mm
Saddle
Marin MTB
