The Marin Alcatraz 1 is the entry level model into the Matt Jones matrix, the base to which the rider can build from and personalize the best dirt jump bike possible. At home boosting your local 6-pack, ripping up the pump track, or hitting the local skate park, the Alcatraz 1 allows you to take care of business in a solid and reliable ride.
The Series 3 6061 aluminum frame is built for hard knocks and is stiff enough for lightning-fast acceleration. Short chainstays make manuals easy whilst little details like ambidextrous cable routing mean you can run your brake on the left or right of the bars. There’s a suspension-corrected CrMo fork to keep the angles correct, front and rear Tektro disc brakes, Vee Tire rubber and plenty of trusted Marin components. Best of all, it’s available in two frame sizes, Regular and Long.
SPECIFICATIONS
Frame

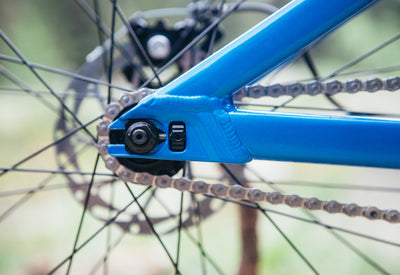

All New Series 3 661 Aluminum Frame, 26” Wheels, 135x1mm Horizontal Dropouts, 73mm Threaded BB, ISCG 5 Tabs
Front Suspension
-
Rims
Marin Custom Extrusion, 27mm Inner, Pinned Joint
Hub, Rear
Forged Alloy, 135x1mm, Bolt-On, Quad Sealed Bearings, Disc, 32H
Hub, Front
Forged Alloy, Bolt On 3/8th Axle, 100mm Spacing
Spokes
14g Black Stainless Steel
Tires
Vee Tire, XCV 26x2.25”, LSG Compound, Wire Bead
Derailleur, Rear
-
Derailleur, Front
-
Shift Lever
-

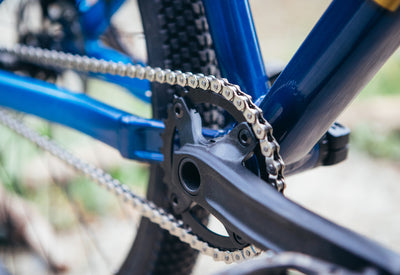

Crankset
Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD, 170mm Crank Length
Chain
KMC HL-1
Brakes, Front
Tektro MD-M280 Mechanical Disc 160mm Rotor
Brakes, Rear
Tektro MD-M280 Mechanical Disc 160mm Rotor
Brake Levers
Tektro CL-330TS Alloy
Handlebar
Marin Riser, 661 Double Butted Aluminum, 38mm Rise, 75mm Width, 4º Up, 9º Back
Stem
Marin 3D Forged Alloy, 4mm
Grips
Marin Single Clamp Locking
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost
Marin Alloy, 30.9mm
Saddle
Marin DJ Saddle
