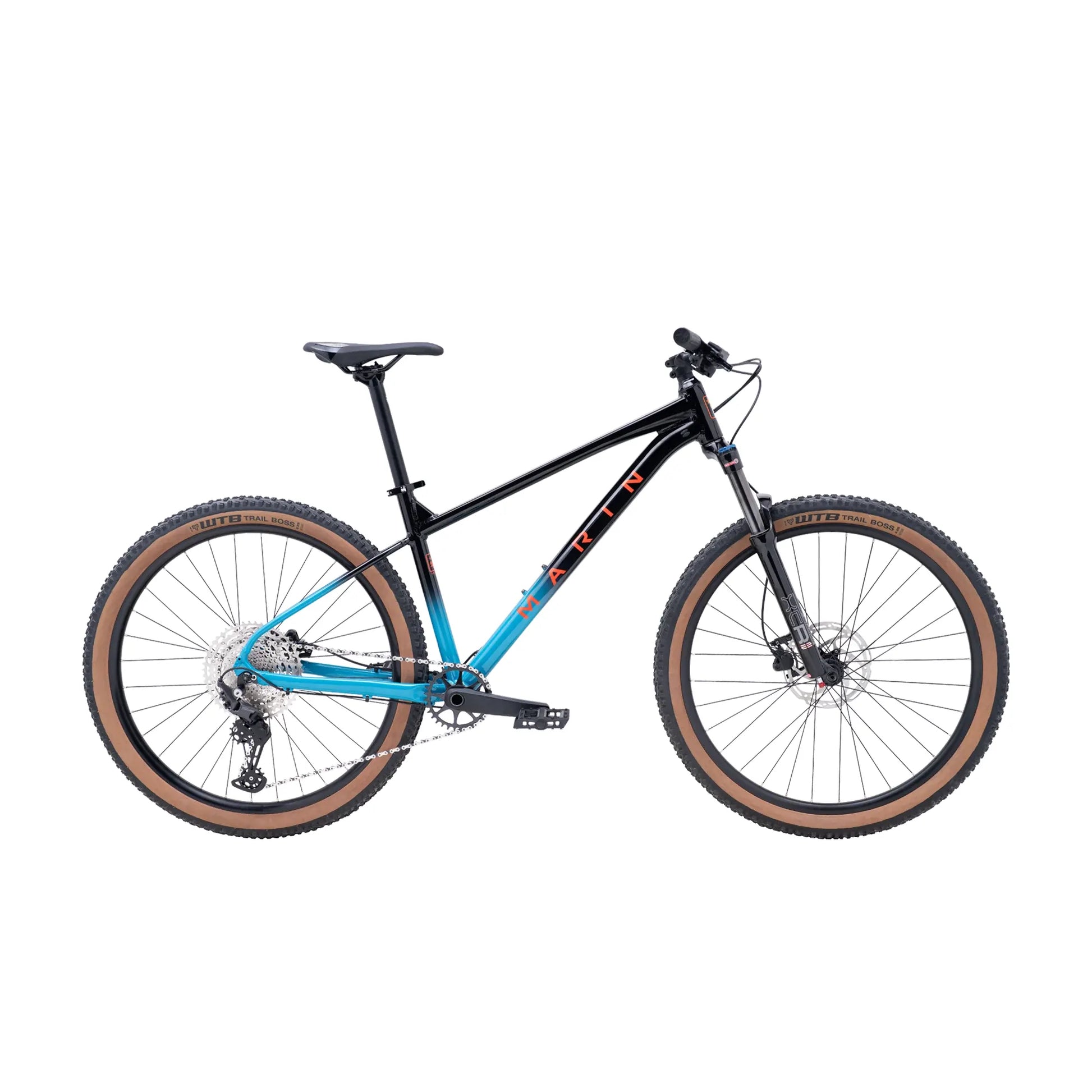

The best of the Bobcat family, the Marin Bobcat Trail 5 is our chance to really push what our bang-for-buck MTB can do. Fast, comfy and fun Series 2 aluminum frame? Check. 1X drivetrain? You got it. SR/Suntour XCR fork? You bet. Shimano CUES 11-speed shifting, Tektro hydraulic brakes and trendy tan wall WTB tires? Damn straight! And, of course, your choice of 27.5” or 29” wheels.
SPECIFICATIONS
Frame
Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Front Suspension
SR Suntour XCR LOR-DS, Thru-Axle, 120mm Travel, Hydraulic Lockout, Damping Adjustment, 42mm (27.5") and 46mm (29") Offsets
Rims
Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Hub, Rear
Forged Alloy, Disc, 32H
Hub, Front
Forged Alloy, Disc, 32H
Spokes
14g Black Stainless Steel
Tires
MTB, 27.5/29x2.25"
Derailleur, Rear
Shimano Deore RDM5100, 11-speed, w/Clutch
Derailleur, Front
-
Shift Lever
Shimano Deore SLM5100, 11-Speed
Crankset
Alloy Crank, Steel Narrow-Wide Chainring, 32T
Chain
KMC X11
Brakes, Front
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Brakes, Rear
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Brake Levers
Shimano BL-MT201
Handlebar
Marin 31.8 Riser, 12mm Rise, 780mm Width
Stem
Marin Alloy, 31.8mm Clamp, 45mm
Grips
Marin MTB, Closed End
Headset
FSA No.10-P
Seatpost
Marin Alloy, 30.9
Saddle
Marin MTB
